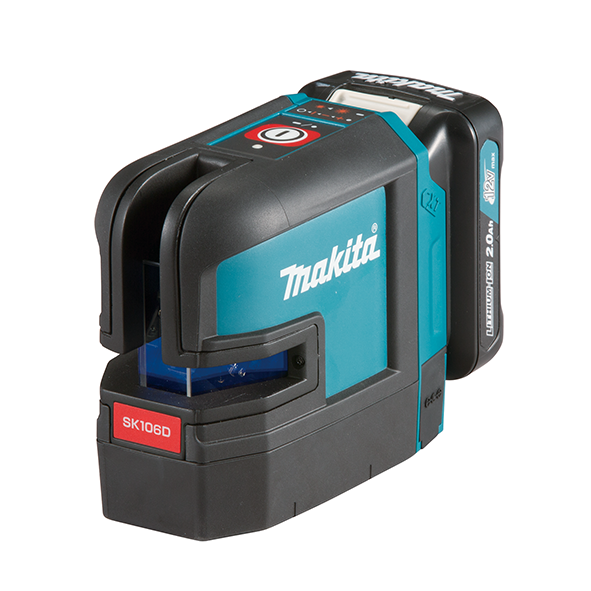

12Vmax Rechargeable Red 4-point Cross Line Laser

12Vmax Rechargeable Red 4-point Cross Line Laser
12Vmax Rechargeable Red 4-point Cross Line Laser

12Vmax Rechargeable Red 4-point Cross Line Laser

Product Code: SK106DZ
Availability: Pre Order
Loading ...
Share:

Specification

Measuring range Up to: 25 m
Measuring range with detector Up to: 80 m
Leveling Accuracy ±3 mm/ 10 m
Self-Leveling Range ±4°
Laser Fan Angle Horizontal: 180°
Vertical: 170°
Number Of Laser Points 4
Number Of Laser Lines 2
Operating Temperature -10 - 50 °C
Operating Time (Approx. Hours) 15 - 40
Laser Type Laser class 2: 635 nm
Dimensions (L x W x H) With BL1016/ BL1021B: 138 x 64 x 102 mm (5-7/16" x 2-1/2" x 4")
With BL1041B: 157 x 64 x 102 mm (6-3/16" x 2-1/2" x 4")
Net Weight 0.69 - 0.85 kg (1.5 - 1.9 lbs.)

Standard equipment
Soft bag, Adapter, Target Plate

Available options
Z: Without Charger & Battery

Features


  • Up to 40 hours of continuous illumination in high visibility mode with BL1041B
  • Line visibility range up to 25 m / 80 m (with Receiver)
  • Pendulum lock enables slope incline applications for increased versatility; Offers added protection of laser diode during transport and storage
  • Handy and accurate self-leveling 4-point crossline laser
  • Brightness selection: 2 Modes (Bright mode / Eco mode)
  • Accuracy +/- 3 mm @ 10 m
  • Self-leveling is correctable up to 4° of slope allowing operation on uneven surfaces
  • Recessed laser windows are highly protected from fracture damage in slot positions for increased durability
  • Horizontal aligning: Convenient way to transfer reference points from one wall to another
  • Vertical aligning: The simple way to ensure that walls, floor, tiles, joints precisely meet one another
  • Allows for attachment to a tripod
