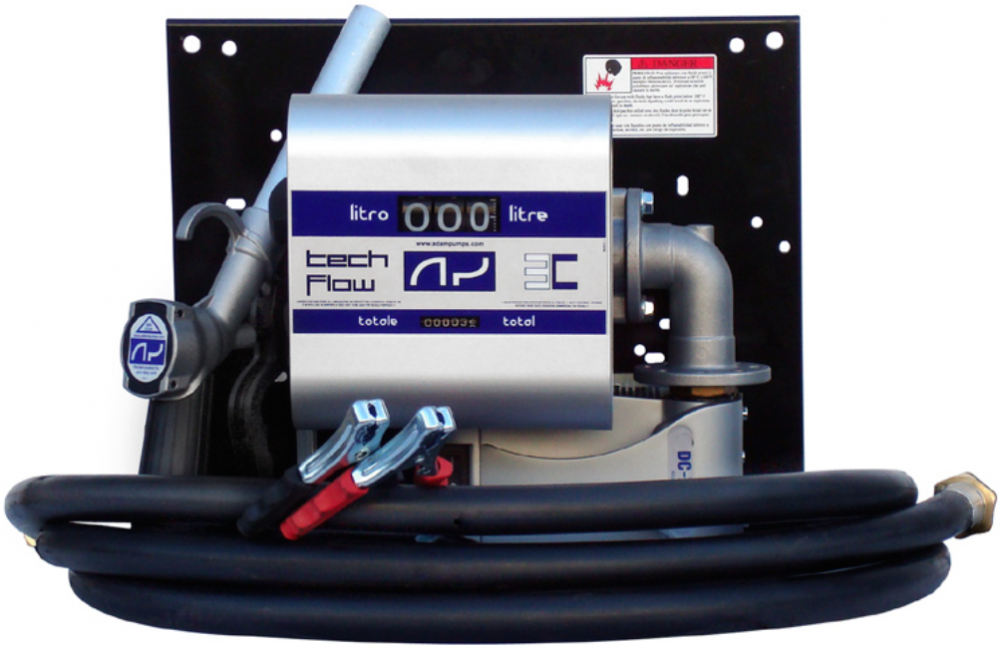

Adam Pumps for Diesel Transfer 40L/min, 1.3Bar, 12V Wall-Tech12V

Adam Pumps for Diesel Transfer 40L/min, 1.3Bar, 12V Wall-Tech12V
Adam Pumps for Diesel Transfer 40L/min, 1.3Bar, 12V Wall-Tech12V

Adam Pumps for Diesel Transfer 40L/min, 1.3Bar, 12V Wall-Tech12V

Product Code: Wall-Tech12V (Made in Italy)
Availability: Pre Order
Loading ...
Share:

Model: Wall-Tech12V (Made in Italy)
Diesel transfer pump with DC power.

Price inclusives 6% GST.

Features

  • Robust design with motor weather protection rating IP55.
  • With built in bypass valve.
  • Materials of component:
    a) Pump Housing: Cast iron
    b) Rotor: Stainless steel
    c) Vanes: POM
    d) Seal for shaft: HNBR
    e) Other seal: NBR
  • With built in filter.

Specifications

Voltage CC 12V
Maximum Current  21 A
On/Off Switch Yes
Length of Cable 2 m
Fuse in Cable 30 A
Duty Cycle S2 30 min
Maximum Flow Rate  40 L/min
Maximum Pressure 1.3 Bar
Vacuum Height 2 m
Inlet x Outlet Port 1" x 1"
Operating Temperature  -20°C to 50°C
Approved Fluids Diesel
Forbidden Fluids Gas, Alcohol, Water
Sound Level 75 dB
Weight 12 kg

Standard Accessories Included

  • PA pump
  • Discharge hose
  • Meter
  • Nozzle
  • Wall Metal Panel
