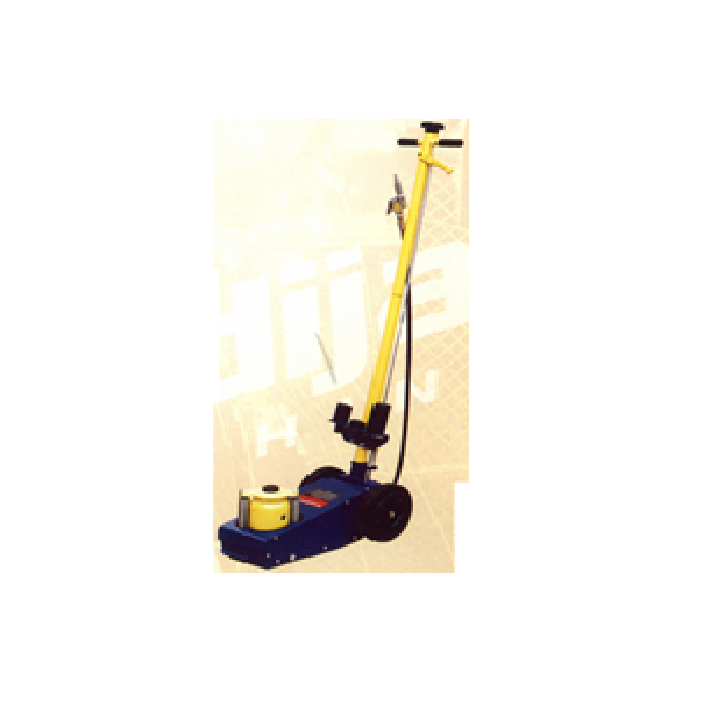

Air Operated Hydraulic Jack (II)

Air Operated Hydraulic Jack (II)
Air Operated Hydraulic Jack (II)

Air Operated Hydraulic Jack (II)

Product Code: AFJ35 (SD103)
Availability: Pre Order
Loading ...
Share:
  • Ideal for lifting and servicing of heavy duty truck and heavy construction equipment .
  • Use compressed air as its air source , air pump push the high pressure oil into oil cylinder , lift the piston rod and ad the carrying strength . Extension screw height can be adjusted a little if necessary . Different adapters widen the adjusted range . Safety overload system prevents jack from being used beyonds its rated capacity . Rubber wheel and handle grip for easy transportation , positioning and high stability .
Model AFJ35 (SD103)
Capacity (ton) 35
Minimum head (mm) 257
Maximum head (mm) 535
Ram travel (mm) 155
Screw adj (mm) 123
Air pressure (MPa) 0.75 - 0.86
Weight (kg) 45.5
