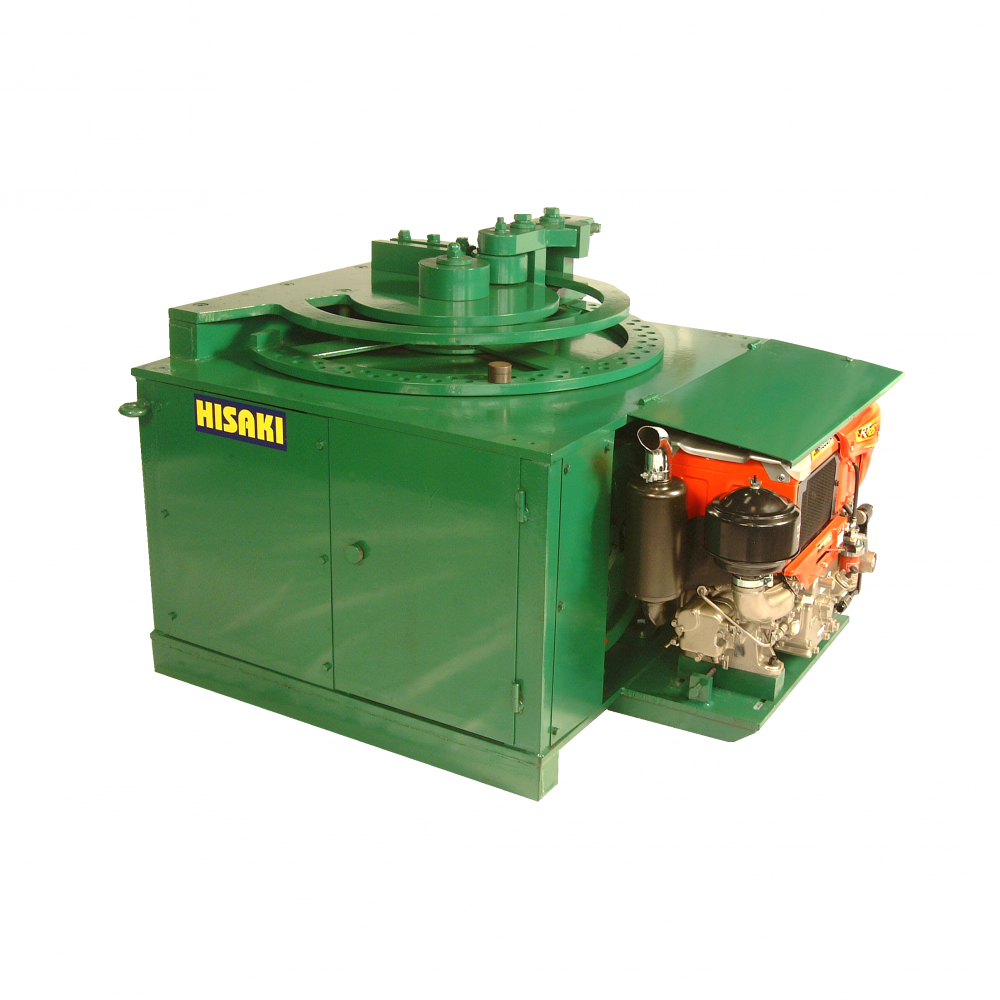

HISAKI BAR BENDER YBB32 & YBB42

HISAKI BAR BENDER YBB32 & YBB42

HISAKI BAR BENDER YBB32 & YBB42

Product Code: HISAKI BAR BENDER YBB32 & YBB42
Availability: Pre Order
Loading ...
Share:
SPECIFICATIONS
Model YBB32 YBB42
Max. Bar Dia. (mm) 32 42
Continuous Bar Dia. (mm) 28 38
Diesel Engine (hp) 6/7 12
Dimension L x W x H (mm) 1320 x 1030 x 875 1549 x 1143 x 939
Weight (kg) 860 970
Steel Bar Tensile Strength 450 N/mm² 450 N/mm²
FEATURES
  • High bending capacity of more than 10 times compared to manual bending.
  • Simple operation by only feeding bar and pedaling a treadle.
  • Bending angle is always constant and accurate by use of fulcrum roller
  • Different sizes fulcrum rollers provided
  • Economical, heavy duty made and simple maintenance
  • Can be powered by electric motor or diesel engine to make operation possible in any construction site
  • The bending of steel bar can be preset and change from 0° to 180° with the limit pin
  • The bending head of the machine can reset gradually and automatically after steel bar is bent
