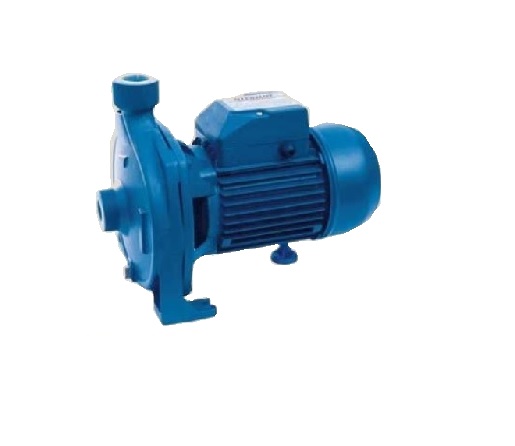

Centrifugal Pump (II)

Centrifugal Pump (II)
Centrifugal Pump (II)

Centrifugal Pump (II)

Product Code: CM / CMT Series
Availability: Pre Order
Loading ...
Share:

Limits of Use:

  • Max. Ambient temperature up to 40°C.
  • Max. Fluid temperature up to 80°C.
  • Max. Pressure up to 10 bar.

Construction Features:

  • Pump Body : Cast Iron
  • Motor Housing : Aluminium
  • Shaft : 45# Steel / Stainless Steel
  • Impeller : Brass Noryl
  • Motor : Closed, Externally ventilated
  • Insulation Class : B/F Protection
  • Class : IP44 / IP54
  • Duty : Continuously rated
  • Mechanical Seal : Ceramic metalized Carbon
Model Size Power

Performances


Q(L/min)

Performances


H(m)

CM50/00 1" x 1" 0.5hp / 1Φ 20-75 18-12
CM100/00 1" x 1" 1hp / 1Φ 10-120 32-5
CM150/00 1" x 1" 1hp / 1Φ 20-105 37-26
CMT100/00 1" x 1" 1hp / 3Φ 10-120 32-5
CMT150/00 1" x 1" 1.5hp / 3Φ 20-105 37-26
CMT200/00 1" x 1" 2hp / 3Φ 20-110 43-31
