Cube 56 - 70

Product Code: Cube 56 - 70

Availability: Pre Order

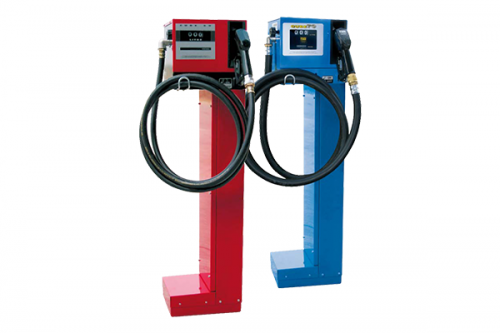

Diesel fuel dispenser for non commercial use. Sturdy structure designed for different applications; can be fixed to walls, tanks cisterns, drums, special pedestals. Self-priming vane pump fitted with bypass, installed on anti-vibration supports. Mechanical seal. Induction motor fitted with thermal motor overload protection. Automatic nozzle with swivel connection. Integrated nazzle holder with stop/start pump lever. Intake mesh filter.

Nutating-disk displacement flow meter with mechanical readout system.

Description

Product Detail

Weight and Packaging

Code	Weight		Packaging
Code	KG	Lbs	mm	inch	pcs/box
00057500C	21	46	400x400x460	15,7x15,7x18,1	1
F0059100A	21	46	400x400x460	15,7x15,7x18,1	1
F0067600C	21	46	400x400x460	15,7x15,7x18,1	1
F0057700C	21	46	400x400x460	15,7x15,7x18,1	1
F00575400	22	48	400x400x460	15,7x15,7x18,1	1
F00591200	22	48	400x400x460	15,7x15,7x18,1	1

Technical Data

Code	00057500C	F0059100A	F0057600C	F0057700C	F00575400	F00591200
Description	Cube 56	Cube 70/33	Cube 56 DC 12V	Cube70 DC 24V	Cube 56/33 + Filter	Cube 70/33 + Filter
Fluids (type)	D	D	D	D	D	D
Flow-rate (I/min)	56	70	56	70	56	70
Flow-rate (gpm)	15	18	15	18	15	18
Voltage (Motor V./Hz DC Volt)	230/5	230/50	12	24	230/50	230/50
Voltage (Power Walt)	600	850	420	600	600	850
Voltage (Amp max.)	3	4,2	35	25	3	4,2
Pump (mod.)	Panth 56	Panth 72	Panth DC	Panth DC	Panth 56	Panth 72
Meter (mod.)	K33	K33	K33	K33	K33	K33
Nozzle (type)	Aut	Aut	Aut	Aut	Aut	Aut
Filter (H2o filter)	NO	NO	NO	NO	YES	YES
Filter (Capacity)	-	-	-	-	30 u	30 u
Inlet	1"	1"	1"	1"	1"	1"
Hose lenght	4m	4m	4m	4m	4m	4m
