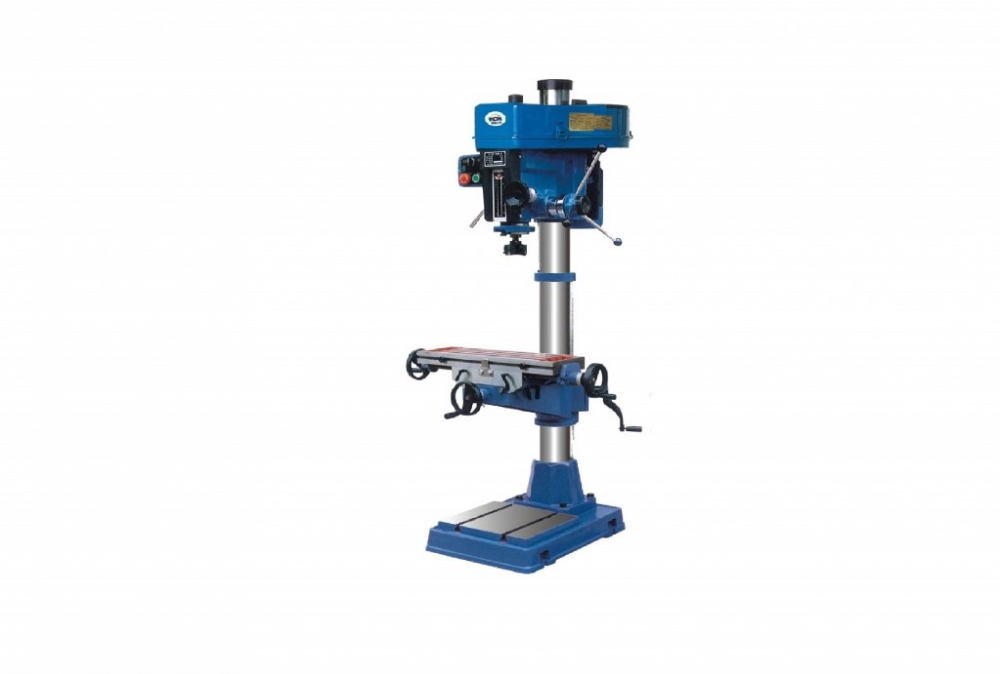

Drilling & Milling (II)
Product Code: ZX-32HC
Availability: Pre Order
DRILLING AND MILLING MACHINE CHARACTERS ;
- The machine adopt belt driving and the noisy low, machine can drill,enlarge ream and milling.
- The machine has 12 series speed variable features, which can be widely fit for processing to kinds of common hard and soft material.
- The head and table can rise and down freely, the head could also move reverse, enlarge the range of process.
- The main body is stable and firm, effective working area of table is 585 x 190mm.
STANDARD ACCESSORIES
- Drill chuckф16mm
- Cutter ф80mm
- Taper sleeve
- Arbor
- Drift
SPECIAL ACCESSORIES
- Milling Chuck
- Angle vice
- Safety guard
| Model | ZX-32HC ("H" without coolant system) |
| Max.drilling capacity (mm) | 31.5 |
| Width of face milling (mm) | 80 |
| Diameter of vertical milling (mm) | 22 |
| Diameter of column (mm) | 115 |
| Spindle travel (mm) | 130 |
| Distance spindle axis to column generating line (mm) | 202 |
| Max.distance spindle nose to table (mm) | 745 |
| Max distance spindle nose to base (mm) | 1245 |
| Spindle taper | MT3 |
| Spindle speeds range (r/min) | 100~2150 |
| Spindle speed series | 12 |
| Dimension of worktable surface (mm) | 585x190 |
| Table travel (mm) | 370x140x515 |
| Dimension of base (mm) | 635x460 |
| Overall height (mm) | 1760 |
| Main motor (W) | single phase 1100, three phase 1500 |
| G.W/N.W (kg) | 345/305 |
| Packing dimension (cm) | 80x75x186 |
