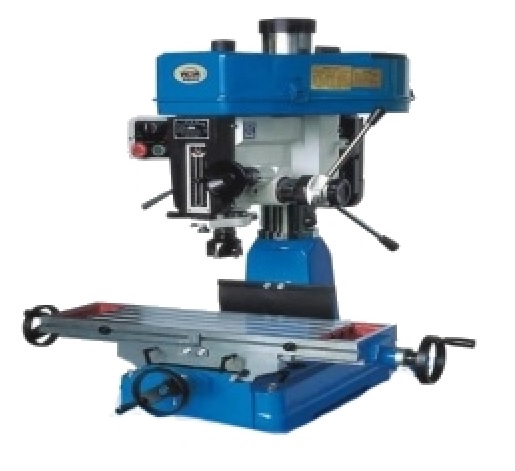

Drilling & Milling Machine (II)
Product Code: ZX 7032
Availability: Pre Order
STANDARD ACCESSORIES
- Drill chuck
- Cutter
- Taper sleeve
- Arbor
- Drift
- Wrench
- Drawbar
- Milling chuck
- Angle vice
- Safety guard
| Model | ZX7032 |
| Max.Drilling Capacity (mm) | 31.5 |
| Max.Face Mill Capacity (mm) | 80 |
| Diameter of vertical milling (mm) | 22 |
| Spindle travel (mm) | 130 |
| Distance spindle axis to column generating line (mm) | 202 |
| Max.distance spindle nose to table (mm) | 460 |
| Spindle taper | MT3 |
| Spindle speeds range (r/min) | 100 - 2150 |
| Spindle speeds series | 12 |
| Dimension of worktable surface (mm) | standard 730x210, optional 820x240 |
| Table travel (mm) | standard 450x170, optional 540x170 |
| Overall height (mm) | 1100 |
| motor (W) | single phase 1100,three phase 1500 |
| G.W/N.W (kg) | 285/250 |
| Packing dimension (cm) | 86x74x116, 97x77x116 |
