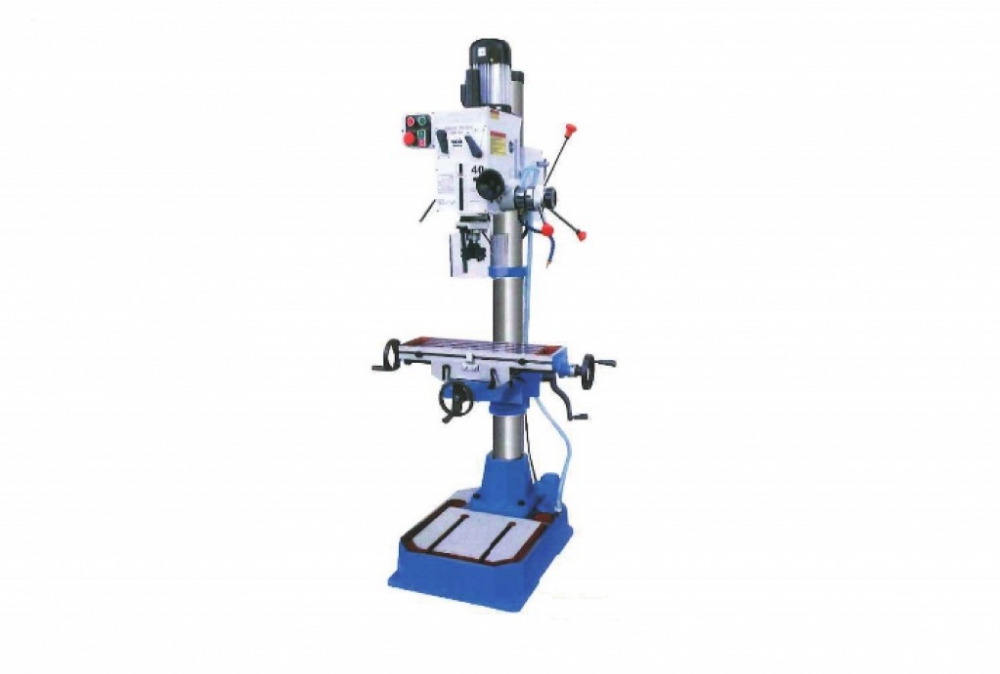

Drilling & Milling Machine (II)
Product Code: ZX-40PC
Availability: Pre Order
CHARACTERS :
- The machine spindle can micro-feeding and hand-feeding.
- Spindle speed change and easiness.
- This machine use gear driving system, and its driving moment is strong enough to drilling, reaming and milling at all kinds of materials.
- The spindle head which can rotated 360° and tilted ±45°.
- The motor was driving by gear which overcome the short coming of belt driving.
- The working scope is large enough for spindle head and work table not only up and down, but also rotation around the column.
STANDARD ACCESSORIES
- Drill chuck ф16mm
- Cutter ф80mm
- Taper sleeve
- Arbor
- Drift
- Wrench
SPECIAL ACCESSORIES
- Milling chuck
- Angle vice
- Safety guard
| Model | ZX-40C("P"with coolant system) |
| Max.drilling capacity (mm) | ( cast iron ) 40 , ( steel ) 32 |
| Width of face milling (mm) | 80 |
| Diameter of vertical milling (mm) | 22 |
| Diameter of column (mm) | 115 |
| Spindle travel (mm) | 120 |
| Distance spindle axis to column generating line (mm) | 272.5 |
| Max.distance spindle nose to table (mm) | 745 |
| Max distance spindle nose to base (mm) | 1245 |
| Spindle taper | MT4 |
| Spindle speeds range (r/min) | 95 - 1600 |
| Spindle speed series | 6 |
| Dimension of worktable surface (mm) | 585x190 |
| Table travel (mm) | 370x140x515 |
| Dimension of base (mm) | 690 x 520 |
| Overall height (mm) | 1810 |
| Main motor (W) | single phase 750, three phase 1100 |
| G.W/N.W (kg) | 375/335 |
| Packing dimension (cm) | 72x74x191 |
