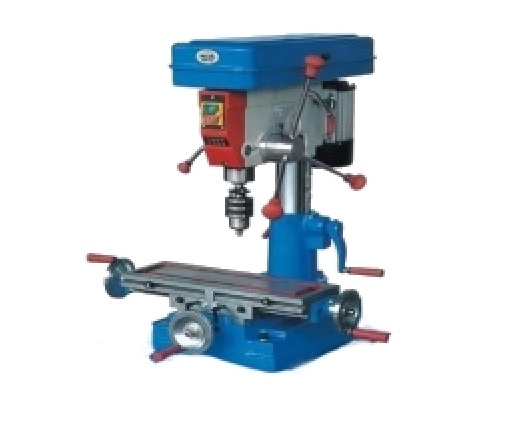

Drilling & Milling Machine (II)
Product Code: ZX 7016
Availability: Out of Stock
| MODEL | ZX7016 |
| Max.Drilling Capacity (mm) | 16 |
| Max.Face Mill Capacity (mm) | 40 |
| Diameter of vertical milling (mm) | 10 |
| Spindle travel (mm) | 80 |
| Distance spindle axis to column generating line (mm) | 182 |
| Max.Distance spindle nose to table (mm) | 360 |
| Spindle taper | MT2 |
| Spindle speed range (r/min) | 320 - 3300 |
| Spindle speeds series | 12 |
| Dimension of worktable surface (mm) | 420x152 |
| Table travel (mm) | 230x120 |
| Overall height (mm) | 900 |
| Motor (W) | 550 |
| G.W/N.W (kg) | 100/75 (woodcase) |
| Packing dimension (cm) | 65x58x77 (woodcase) |
