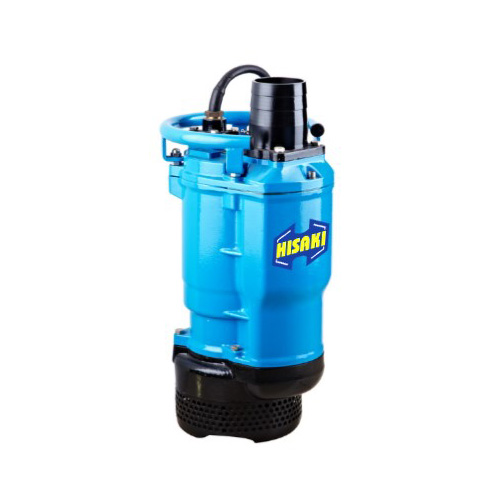

ELECTRIC SUBMERSIBLE PUMP HSP SERIES

ELECTRIC SUBMERSIBLE PUMP HSP SERIES

ELECTRIC SUBMERSIBLE PUMP HSP SERIES

Product Code: ELECTRIC SUBMERSIBLE PUMP HSP SERIES
Availability: Pre Order
Loading ...
Share:
SPECIFICATIONS
Model HSP337 HSP355 HSP475 HSP411 HSP675
Outlet 3" (80mm) 3" (80mm) 4" (100mm) 4" (100mm) 6" (150mm)
Motor Power (Hp/Kw) 5 / 3.7 7.5 / 5.5 10 / 7.5 15 / 11 10 / 7.5
Net Weight (Kg) 60 77 105 130 106
Total Head (m) 29 32 40 49 31
Max Capaicty (m³) 55 70 84 87 121



  • Capacity up to 156m³/h.
  • Head up to 49 meter.
  • Motor insulation class F and IP68.
  • Water Temperature up to 40°C.
FEATURES
  • The body of motor and pump is made of right cast iron for long testing durability.
  • Greatly increased maximum submersible depth due to mechanical seal to high pressure (0.5Mpa).
  • Semi-open impeller made of high chrome alloy match with wear place (ductile iron).
  • Effective motor cooling.
  • Hermetically sealed motor with build in thermal protection.
  •
