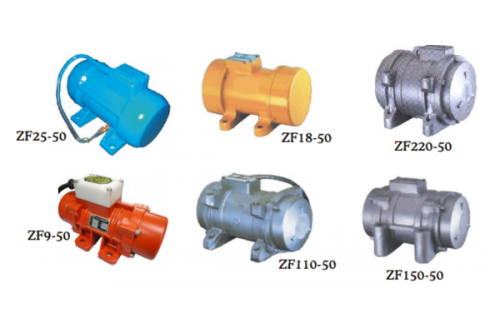

External Vibrator
Product Code: External Vibrator
Availability: Pre Order
Product Detail
| Model | Power (kW) | Voltage / Frequency | Rated Current (A) | Vibrating Amptitude (mm) | Contrifugal Force (kN) | Weight (kg) | Dimension |
| ZF9-50 | 0.09 | 3 Phase / 415V / 50 Hz | 0.19 | 2.1 | 1-0 | 4.4 | 223x131x135 |
| ZF18-50 | 0.18 | 3 Phase / 415V / 50 Hz | 0.37 | 2.3 | 1.1-0 | 8.5 | 247x172x145 |
| ZF25-50 | 0.25 | 3 Phase / 415V / 50 Hz | 0.45 | ~ | 2.5 | ~ | ~ |
| ZF55-50 | 0.55 | 3 Phase / 415V / 50 Hz | 1.3 | 1.85 | 4.2-0 | 23 | 297x205x214 |
| ZF80-50 | 0.8 | 3 Phase / 415V / 50 Hz | 1.74 | 1.1 | 3.8-2 | 28 | 350x205x214 |
| ZF110-50 | 1.1 | 3 Phase / 415V / 50 Hz | 1.0 | 1.7 | 5-2.7 | 28 | 350x205x210 |
| ZF150-50 | 1.5 | 3 Phase / 415V / 50 Hz | 3.18 | 2.4 | 8.56-5.5 | 40 | 385x240x245 |
| Zf220-50 | 2.2 | 3 Phase / 415V / 50 Hz | 4.6 | 2.0 | 9.2-6.7 | 45 | 410x250 |
