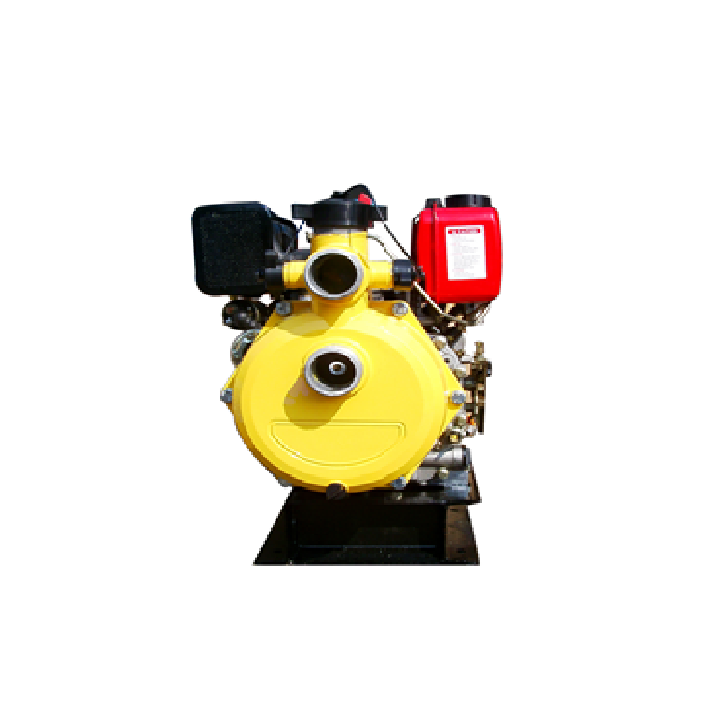

Fire Fighting Pump (II)
Product Code: DJ-50X
Availability: Pre Order
PUMP
| Model | DJ50X |
| Suction diameter | 2" |
| Discharge diameter | (2x2") + (2x1") |
| Max. Head | 63m |
| Suction lift | 3m |
| Max. Flow | 630L/min |
| Pump Body | Aluminium alloy |
| Impeller | Carbon steel |
| Mechanical seal | Carbon-Ceramic |
ENGINE
| Type | Single-cylinder, vertical, 4-stroke, air-cooled, direct-injection diesel | Single-cylinder, vertical, 4-stroke, air-cooled, direct-injection diesel |
| Displacement | 211cc | 296cc |
| Bore x Stroke(mm) | 70 x 55 | 78 x 62 |
| Speed (rpm) | 3600 | |
| Continous / Max. Output (Hp) | 3.8 /4.2 | 6.0 / 6.7 |
| Starting System | Recoil / electric starter | Recoil / eletric starter |
| Cooling system | Forced air | Forced air |
| Governor system | Centrifugal weight system | Centrifugal weight system |
| Fuel / tank capacity | Diesel / 2.5L | Diesel / 3.5L |
| Lub. Oil Capacity (L) | 0.75 | 1.1 |
