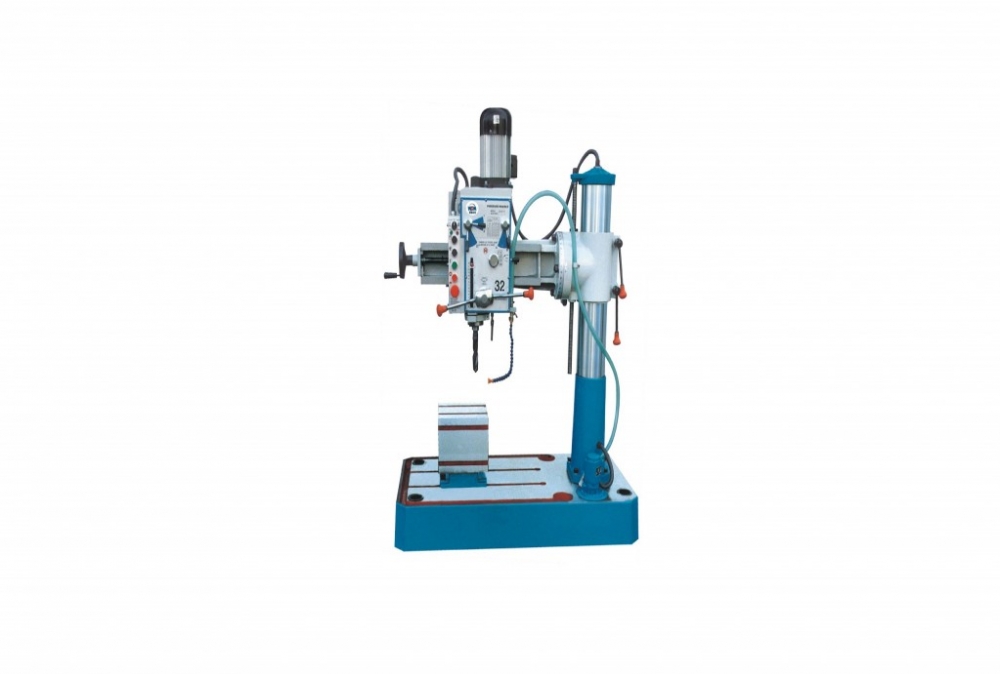

Radial Drilling Machine (II)

Radial Drilling Machine (II)
Radial Drilling Machine (II)

Radial Drilling Machine (II)

Product Code: Z3032 x 7P
Availability: In Stock
Loading ...
Share:

CHARACTERS :

  • With wide range of speed, with manual power feeds. The feed of machines are very easily engaged and disengaged at any time
  • The radial arm can rotated and can tilted 45±°,it reliable and easy job can be done.
  • Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
  • The machine with small appearance and much function, the machine are widely used for drilling, counterboring, reaming,tapping and etc.
MODEL Z3032 x 7P
Max.Drilling capacity (mm) 31.5
Max.tapping capacity (mm) ( cast iron )20 ( steel )16
Distance spindle axis to column generating line (mm) 300 ~ 700
Diameter of column (mm) 150
Spindle taper MT3
Spindle travel (mm) 130
Spindle speeds range (r/min) 100 ~ 1600
Spindle speeds series 8
Spindle feeds (mm/r) 0.08 , 0.14 , 0.23
Rotary angle of rocker in horizontal plane ( ° ) 360
Distance spindle nose to working surface of base (mm) 275 - 680
Dimension of worktable (mm) 250 x 250 x 250
Dimension of base (mm) 1200 x 6250 x 155
Overall size (mm) 1235 x 625 x 1230
Power of main motor (W) 750 or 1100
G.W/N.W (kg) 580/500
Packing dimension (cm) 127 x 69 x 137
