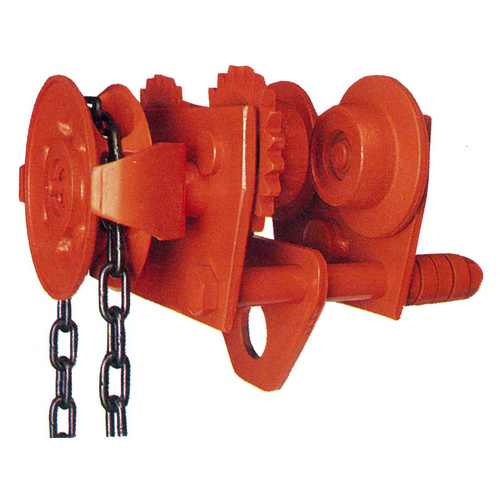

Geared Trolley for Chain Hoist GT5

  1. Besides its use for lowering the chain hoist, the GT-5 can be used as a stand-alone trolley. The trolley can be easily pulled along the rails by hand thanks to the gear-speed reducer.
  2. Smooth running: The wheel for each load uses ball bearings that reduce running resistance and ensure freedom from maintenance. For large loads of 10 t, two ball bearings are used for each wheel to achieve a combination of sufficient strength and smooth running of wheels.
  • Trolley width can be adjusted to one of three different sizes by changing the collar. (Two sizes for the 10 t model.)
  • The wheels on models up to 5 t are made so that they can run along either I-beams or H-beams.

Technical Specification

MODEL RATED LOAD
(T)
TROLLEY RAIL (I-BEAM)
A × B × T1 × T2
(MM)
MIN. CURVE
RADIUS (MM)
STANDARD
LIFT
(M)
NET
WEIGHT
(KG)
GT5005 0.5 125×75×5.5×9.5
180×100×6×10
250×125×7.5×12.5
800 2.5 9
GT5010 1 150×75×5.5×9.5
180×100×6×10
250×125×7.5×12.5
1000 12
GT5015 1.6 1100 15
GT5020 2 200×100×7×10
250×125×7.5×12.5
300×150×8×13
1200 3.0 23
GT5030 3.2 200×100×7×10
250×125×10×19
300×150×11.5×22
1500 32
GT5050 5 250×125×10×19
300×150×11.5×22
450×175×11×20
52
GT5100 10 400×150×12.5×25
450×175×13×26
3000 3.5 115
