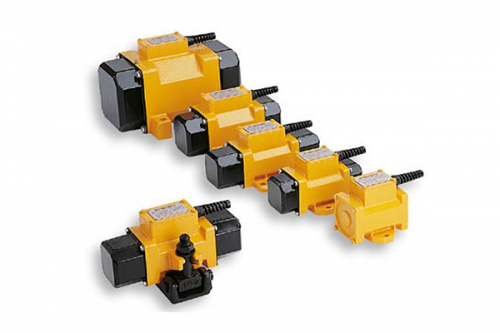

High Frequency External Vibrator
Product Code: High Frequency External Vibrator
Availability: Pre Order
Dynapac ER high-speed electric vibrators should be used together with a frequency converter (UF/UE).
Frequency converters equipped with protected outlets are recommended for such applications
ER 207B to ER507B are mounted with a quick-release bracket, allowing easy positioning and move of the vibrator (less units required, lower investment)
Dynapac ER normal and low-frequency vibrators are supplied in standard voltage: 230/400V-3-50 Hz, but can be delivered in other voltages upon request.
Adjustable centrifugal force
Most external vibrators are bolt-mounted, but ER 305, 405 and 505 can be equipped with mounting kits for easy positioning and move.
Frequency converters equipped with protected outlets are recommended for such applications
ER 207B to ER507B are mounted with a quick-release bracket, allowing easy positioning and move of the vibrator (less units required, lower investment)
Dynapac ER normal and low-frequency vibrators are supplied in standard voltage: 230/400V-3-50 Hz, but can be delivered in other voltages upon request.
Adjustable centrifugal force
Most external vibrators are bolt-mounted, but ER 305, 405 and 505 can be equipped with mounting kits for easy positioning and move.
Product Detail
| Model | ER207B | ER407B | ER507B |
| Speed (rpm) | 6000 | ||
| Max. centrifugal force (N) | 6500 | 12000 | 17000 |
| Voltage | 42 V - 3 - 200 Hz* | 42 V - 3 - 200 Hz* | 42 V - 3 - 200 Hz* |
| Intensity (A) | 11 1 | 6.5 | 23.5 |
| Weight (Kg) | 10.5 | 15.5 | 23.2 |
| Bracket attachment | VT2 | VT4 | VT4 |
