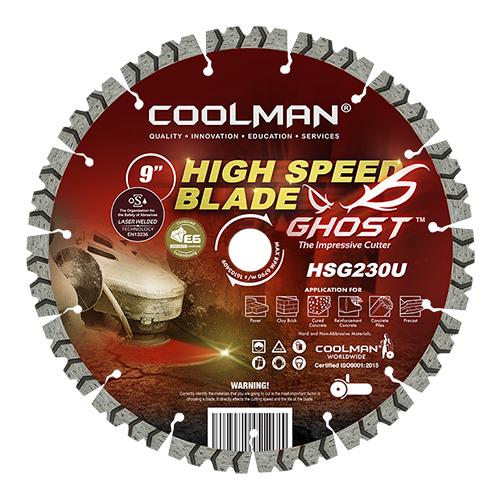

Product Code: HSG 230U
Availability: Pre Order
Loading ...
Share:

GHOST™ Series – This impressive cutting blade is the pinnacle of the latest technology in diamond blade cutting. Featuring a meticulous laser welded blade with 25.4 arbor diameter, accompanied by combined adaptive cutting and cooling with minimal dressing, which gives it an extreme advantage in terms of cutting speed without affecting the lifespan of the blade.

Additional information

BOND DESIGN

Segmented

BORE DIAMETER

20mm / 22.23mm

CHARACTERIZE

Fast-Cut, More sharp, Stability

CUT DEPTH

3.5" / 89mm

APPLICATION MATERIAL

Burnt Clay Brick, Concrete Piles, Cured Concrete, Paver, Precast, Reinforcement Concrete

DIAMETER

9" / 230mm

EQUIPMENT

Electric Angle Grinder, Pneumatic

GRADE

Supreme

OPERATING MAX. SPEED

7,575 RPM

OPERATING MIN. SPEED

4,050 RPM

SEGMENT HEIGHT

15mm

SEGMENT WIDTH

3.0mm

USAGE

Dry Cut, Wet Cut

WELDING TECHNOLOGY

Laser Welded
