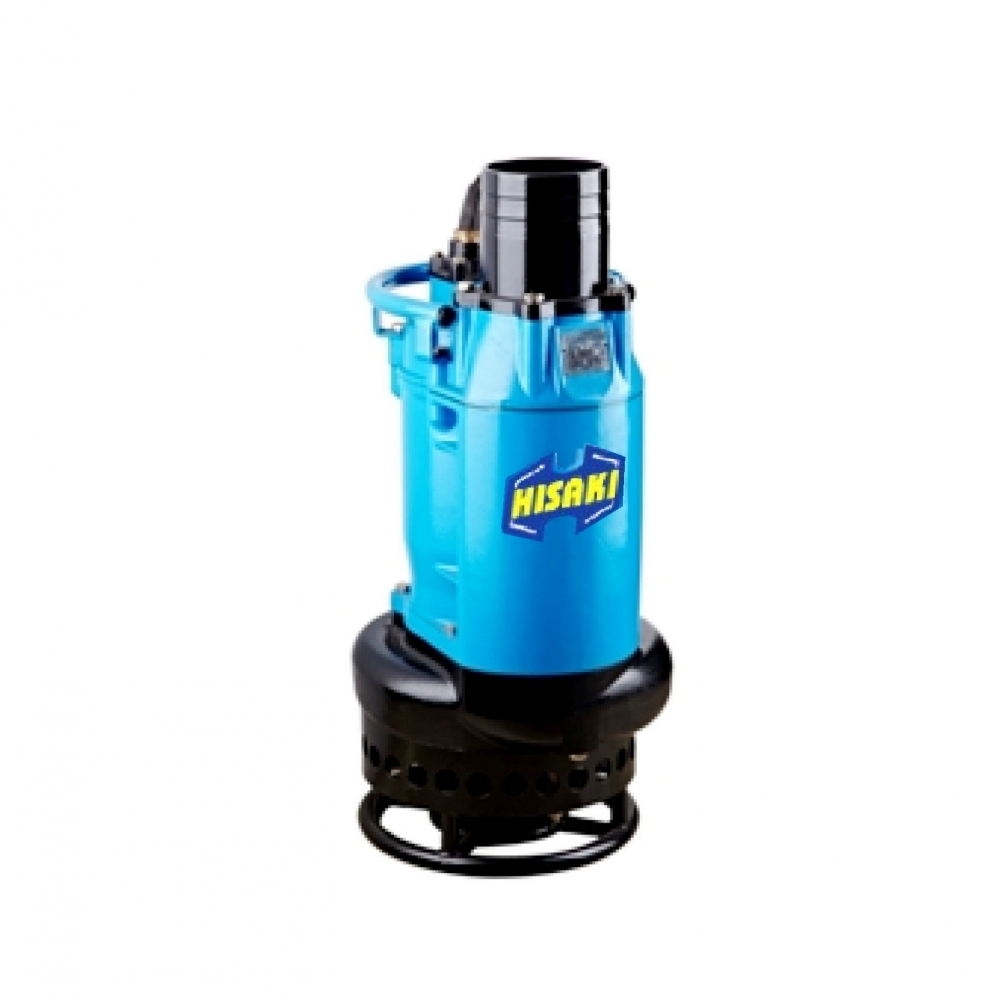

HISAKI SLURRY PUMP HSB SERIES
Product Code: HISAKI SLURRY PUMP HSB SERIES
Availability: Pre Order
SPECIFICATIONS
| Model | HSB460 | HSB690 |
| Outlet | 4" (100mm) | 6" (150mm) |
| Motor Power (HP/Kw) | 8 / 6 | 12 / 9 |
| Net Weight (kg) | 145 | 170 |
| Total Head (m) | 16.9 | 21.5 |
| Max Capaicty (m³) | 150 | 171 |
- Capacity up to 156m³/h.
- Head up to 49 meter.
- Motor insulation class F and IP68.
- Water Temperature up to 40°C.
FEATURES
- The body of motor and pump is made of right cast iron for long testing durability.
- Greatly increased maximum submersible depth due to mechanical seal to high pressure (0.5Mpa).
- Semi-open impeller made of high chrome alloy match with wear place (ductile iron).
- Effective motor cooling.
- Hermetically sealed motor with build in thermal protection.
- 4 Pole motor for HSB Slurry Series.
