HMM Manual Chain Hoist » HPB-50A
Product Code: HPB-50A
Availability: In Stock
RM0.00

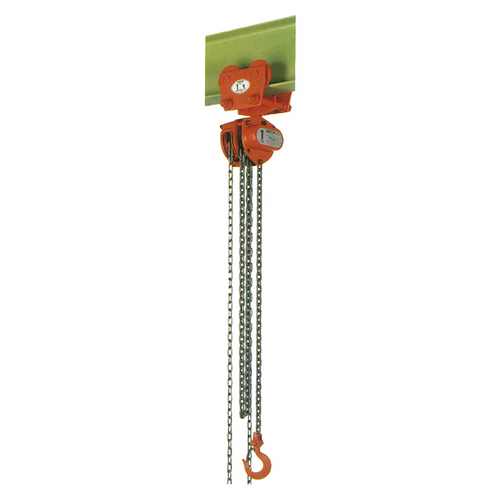

Manual Chain Hoist: HPB-50A
Features:
1. Plain trolley and chain hoist are connected with a dedicated fixture, allowing efficient use of the cradle.
2. Trolley width can be adjusted to one of three different sizes by changing the collar.
3. The wheels are made so that they can run along either I-beams or H-beams.
Technical Spec
Tech Spec
| MODEL | RATED LOAD (T) |
STANDARD LIFT (M) |
MIN HEADROOM G (MM) |
TROLLEY RAIL (I-BEAM) A × B × T1 × T2 (MM) |
MIN. CURVE RADIUS (MM) |
|---|---|---|---|---|---|
| HPB5005A | 0.5 | 2.5 | 245 | 125×75×5.5×9.5 180×100×6×10 250×125×7.5×12.5 |
800 |
| HPB5010A | 1 | 285 | 150×75×5.5×9.5 180×100×6×10 250×125×7.5×12.5 |
1000 | |
| HPB5015A | 1.6 | 1100 | |||
| HPB5020A | 2 | 3 | 340 | 200×100×7×10 250×125×7.5×12.5 300×150×8×10 |
1200 |
| HPB5030A | 3.2 | 415 | 200×100×7×10 250×125×10×19 300×150×11.5×22 |
1500 | |
| HPB5050A | 5 | 555 | 250×125×10×19 300×150×11.5×22 450×175×11×20 |
Dimension
| MODEL | EXTERNAL DIMENSION (MM) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| C | D | H | I | K | L | M | U | O | P | |
| HPB5005A | 90 | 90 | 93 | 105 | 195 | 23-t2 | b-43 | 72+t2 | ||
| HPB5010A | 60 | 100 | 95 | 103 | 206 | 25-t2 | b-42 | 78+t2 | ||
| HPB5015A | 60 | 115 | 112 | 112 | 221 | 29-t2 | b-41 | 85+t2 | ||
| HPB5020A | 110 | 132 | 128 | 128 | 262 | 31-t2 | b-63 | 102+t2 | ||
| HPB5030A | 110 | 160 | 133 | 133 | 306 | 28-t2 | b-63 | 126+t2 | ||
| HPB5050A | 125 | 166 | 166 | 37-t2 | b-76 | 132+t2 | 200 | 165 | ||
