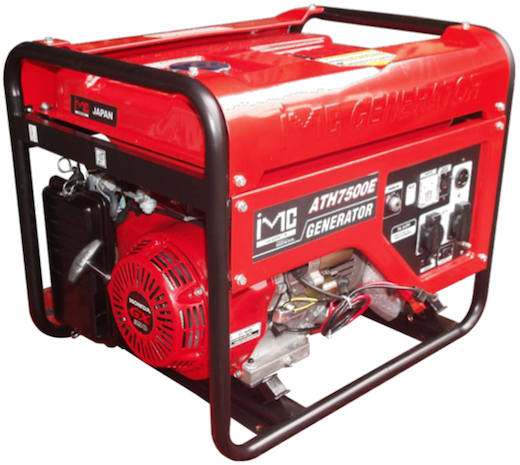

IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E

IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E
IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E

IMC Honda Engine Generator GX390 5.0kVA 25L 80kg ATH7500E

Product Code: ATH7500E
Availability: Pre Order
Loading ...
Share:

Model: ATH7500E
5000W generator with Honda petrol engine GX390.

Price inclusives 6%GST.

Features

  • Large air filter
  • Exhaust muffler
  • 25L fuel tank

Specifications

Engine Brand   Honda
Engine Model GX390
Engine Displacement    389 cc (cm3)
Engine Maximum Output   8.7kW / 11.7HP
Engine Type Air Cooled, 4-cycle, OHV Gasoline Engine
Engine Oil Alert System Standard
Engine Ignition System Transistor (C.D.I.)
Engine Start Coil Start
Generator Alternator Self-Exciting, 2-Pole, Field Rotating Type, Single Phase
Voltage Regulator AVR
Phase Single
AC Max. Output 5.5kW / 50Hz
AC Rated Output 5.0kW / 50Hz
Rated Voltage 220V / 50Hz
DC Output 12V-8.3A (Receptacle)
Rated Power Factor 1 cosΦ
Pilot Lamp Standard
Volt Meter  Standard
Fuel Tank Capacity  25 Liters
Continuous Operating Hours    8 Hours
Dimensions (L x W x H)  710mm x 540mm x 570mm
Dry Weight  80.5 kg

Standard Accessories

  • Instruction manual
  • Engine Manual
