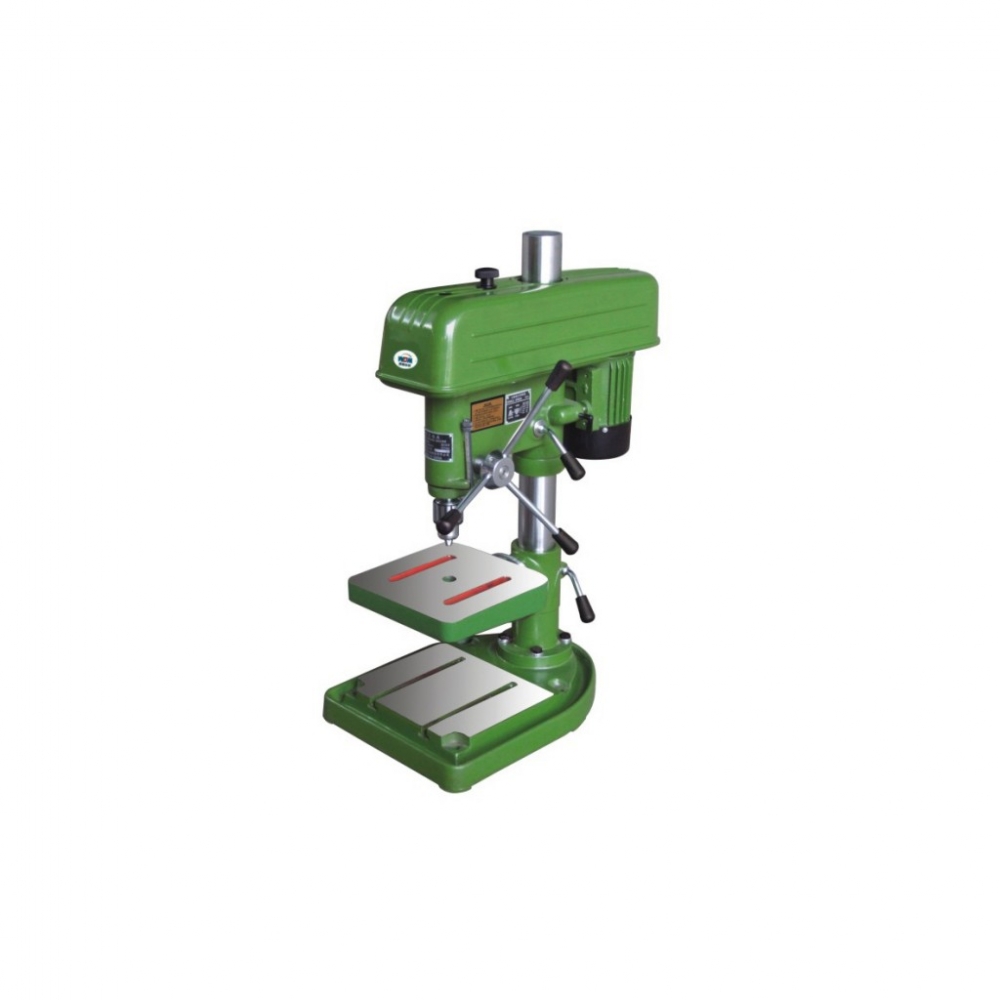

Industrial Type Bench Drilling (II)
Product Code: Z512-2 / Z516
Availability: Pre Order
Both spindle head, column and base using high quality cast iron, strong and everlasting. High precision with excellent feature, widely use at instrument and camera area.
| Model | Z512-2/Z516 |
| Maximum drilling diameter (mm) | 12.7/16 |
| Diameter of column (mm) | 70 |
| Spindle travel (mm) | 100 |
| Distance spindle axis to column generating line (mm) | 193 |
| Maximum distance spindle nose to table (mm) | 332/326 |
| Maximum distance spindle nose to base (mm) | 556/560 |
| Spindle taper | B16/B18 |
| Spindle speed range (r/min) | 480-4100 |
| Spindle speeds series | 5 |
| Dimension of work table surface (mm) | 265x265 |
| Dimension of base (mm) | 528x360 |
| Overall height (mm) | 1037 |
| Main motor (kw) | 370/550 |
| GW/NW (kg) | 108/90 |
| Packing size (cm) | 77x42x94 |
