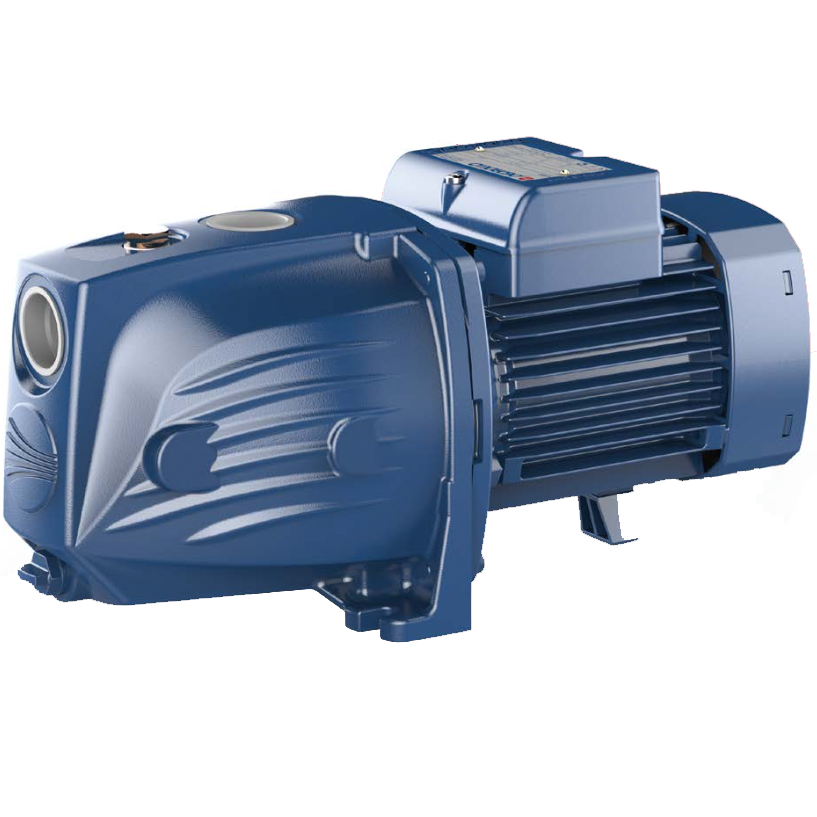

JET Self Priming Pump 1100W, 5~70L/min, 55~28m JSWm2A

JET Self Priming Pump 1100W, 5~70L/min, 55~28m JSWm2A
JET Self Priming Pump 1100W, 5~70L/min, 55~28m JSWm2A

JET Self Priming Pump 1100W, 5~70L/min, 55~28m JSWm2A

Product Code: JSWm2A
Availability: In Stock
Loading ...
Share:

Model: JSWm2A (Single Phase)
Replacement of JSWm15M.

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The self-priming JSW pumps are designed to pump water even in cases where air is present.
  • As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic

Type: surface

Family: self-priming

Performance Range

  • Flow rate up to 80 l/min (4800l/h)
  • Head up to 70m

Application Limits

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature between -10 °C and +40 °C
  • Ambient temperature up to +40°C
  • Max. working pressure 6.5 bar
  • Continuous service S1

Specifications

Size Discharge   1" x 1"
Power 1100 W / Single phase
Flow Rate 5 ~ 70 L/min
Head 55 ~ 28 meters
Manometric Suction Lift Max. 9 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   388mm x 180mm x 201mm
Weight 14.2 kg
