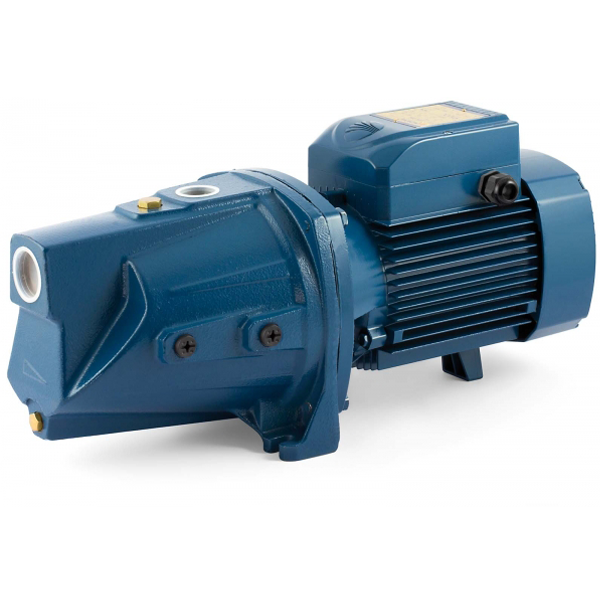

JET Self Priming Pump 1500W, 10~160L/min, 48~22m JSWm3BL

JET Self Priming Pump 1500W, 10~160L/min, 48~22m JSWm3BL
JET Self Priming Pump 1500W, 10~160L/min, 48~22m JSWm3BL

JET Self Priming Pump 1500W, 10~160L/min, 48~22m JSWm3BL

Product Code: JSWm3BL
Availability: In Stock
Loading ...
Share:

Model: JSWm3BL

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The self-priming JSW pumps are designed to pump water even in cases where air is present.
  • As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic, civil and industrial applications such as the distribution of water in combination with pressure sets, and for the irrigation of gardens and allotments, etc.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic

Type: surface

Family: self-priming

Performance Range

  • Flow rate up to 160 l/min (9600l/h)
  • Head up to 96m

Application Limits

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature between -10 °C and +40 °C
  • Ambient temperature up to +40°C
  • Max. working pressure 10 bar
  • Continuous service S1

Specifications

Size Discharge   1-1/4" x 1"
Power 1500 W / Single phase
Flow Rate 10 ~ 160 L/min
Head 48 ~ 22 meters
Manometric Suction Lift Max. 9 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   530mm x 206mm x 242mm
Weight 26.1 kg
