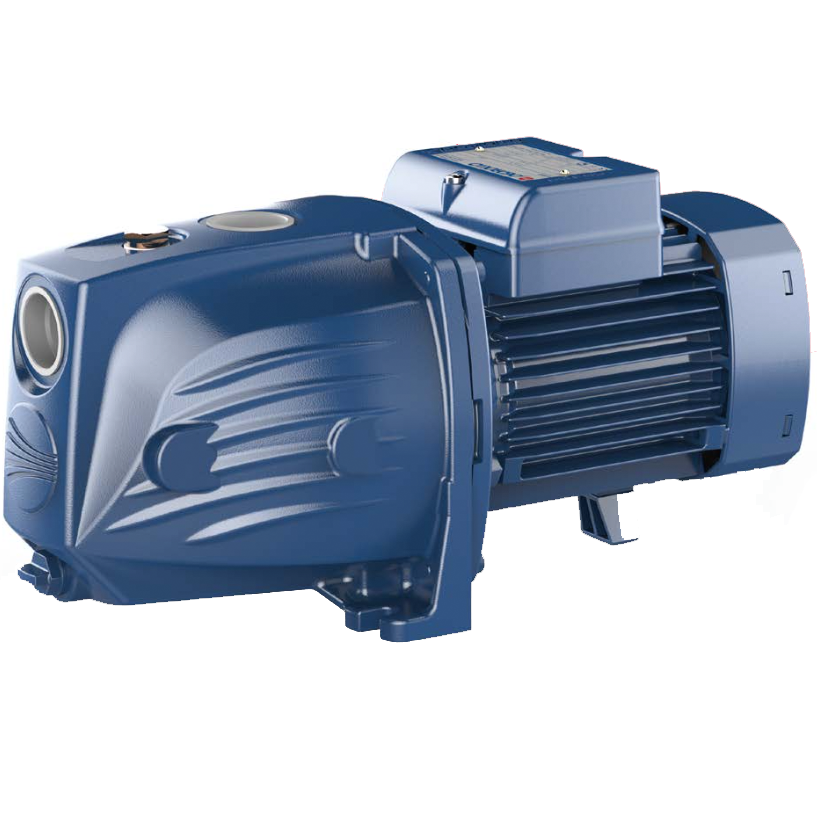

JET Self Priming Pump 370W, 5~55L/min, 31~11m JSWm1C-N

JET Self Priming Pump 370W, 5~55L/min, 31~11m JSWm1C-N
JET Self Priming Pump 370W, 5~55L/min, 31~11m JSWm1C-N

JET Self Priming Pump 370W, 5~55L/min, 31~11m JSWm1C-N

Product Code: JSWm1C-N
Availability: In Stock
Loading ...
Share:

Model: JSWm1C-N (Single Phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The self-priming JSW pumps are designed to pump water even in cases where air is present.
  • As a result of their reliability and the fact that they are easy to use, they are recommended for use in domes- tic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic

Type: surface

Family: self-priming

Performance Range

  • Flow rate up to 50 l/min (3 m3/h)
  • Head up to 47m

Application Limits

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature between -10 °C and +40 °C
  • Ambient temperature up to +40°C
  • Max. working pressure 6 bar
  • Continuous service S1

Specifications

Size Discharge   1" x 1"
Power 370 W / Single phase
Flow Rate 5 ~ 55 L/min
Head 31 ~ 11 meters
Manometric Suction Lift Max. 9 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   348mm x 171mm x 158mm
Weight 9.0 kg
