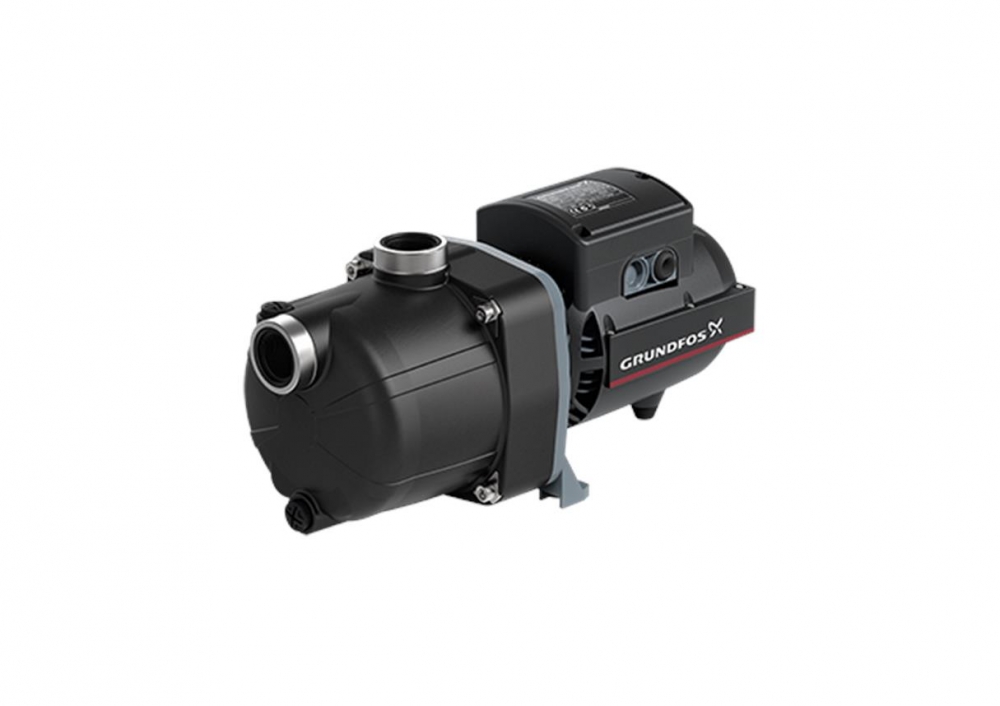

JPC 4-54 A-C-BBVP
The JPC self-priming, single-stage centrifugal pump has a composite body as well as axial inlet and radial outlet. The pump has a built-in ejector with guide vanes for optimum self-priming properties. The pumps can be used in various applications where self-priming is needed. They are especially suitable for water supply and transfer in the following applications:
|
The rotor is mounted on oversized, sealed, greased-for-life ball bearings to ensure silent running and long life. Single-phase motors have built-in thermal and current protection, and they require no additional motor protection.
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 35 °C | |
| Liquid temperature during operation: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Primary shaft seal: | BBVP | |
| Approvals on nameplate: | CE,WM,C-TICK | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump housing: | Composite | |
| Impeller: | Composite |
| Installation: | ||
| Range of ambient temperature: | -10 .. 40 °C | |
| Maximum operating pressure: | 6 bar | |
| Maximum permissible inlet pressure: | 1 bar | |
| Pump inlet: | NPT 1" | |
| Pump outlet: | NPT 1" | |
| Electrical data: | ||
| Power input - P1: | 1100 W | |
| P2: | 0.735 kW | |
| Mains frequency: | 60 Hz | |
| Rated voltage: | 1 x 220-240 V | |
| Rated current: | 5 A | |
| Capacitor size - run: | 13 µF/450 V | |
| Enclosure class (IEC 34-5): | IP44 | |
| Insulation class (IEC 85): | F | |
| Type of cable plug: | NONE | |
| Others: | ||
| Net weight: | 11 kg | |
| Gross weight: | 11 kg | |
| Shipping volume: | 0.026 m³ | |
