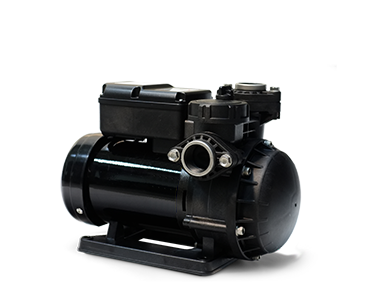

Kikawa 1/2 hp flow-controlled
Product Code: KQ400NC
Availability: In Stock
RM0.00
Pump Material：
Cast iron
Engineering Plastic
Stainless steel
Fluid temperature：
Standard
High temperature
Utility frequency：
50Hz
CHANGE SPEC.
Kikawa KQ-C series is a flow-controlled booster pump which starts by pressurised flow, reducing the frequent switching under pipe leakages.
Rated power1/2 hp
Rated head20 m
Rated flow32 L/min
Model
- Low noise multistage centrifugal pump
- Anti-corrosion electro-coating cast iron, stainless steel, or engineering plastic pump casing
- Dual motor wiring and pump casing thermal protectors
- Pump controller by built-in flow switch activated under small natural water flow
Applications
- positive head pressure boosting
- rooftop tank pressure boosting
- in series pump installation
- SPECIFICATIONS
- DOWNLOADS
| Model | |
|---|---|
| Packing size | 340 X 210 X 270 mm |
| Weight | 9.0 kg |
| Technical | |
|---|---|
| Rated head | 20 m |
| Rated flow | 32 L/min |
| Maximum head | 26 m |
| Max. capacity | 58 L/min |
| Minimum flow | 1.5 L/min |
| Materials | |
|---|---|
| Pump case | Noryl |
| Motor frame | Steel Plate |
| Motor shaft | SUS304 + S45C |
| Mechanical seal | Carbon + Ceramic + NBR |
| Impellar | Noryl |
| Difusser | Noryl |
| Flange | PP |
| Installation | |
|---|---|
| Inlet diameter | 25(1 |
| Outlet diameter | 25(1 |
| Ambient temperaure | < 45 ºC |
| Fluid temperaure | +2 ºC ~ +40 ºC |
| Max. operating pressure | 5 kg/cm2 |
| Electrical | |
|---|---|
| Motor type | BETZPR-KQT(1) |
| Number of poles | 2 |
| Utility frequency | 50 Hz |
| Rated power | 1/2 hp |
| Rated voltage 1Ø | 220 V |
| Rated current 1Ø | 2.30 A |
| Insulation class | E |
| Enclosure class | IP44 |
