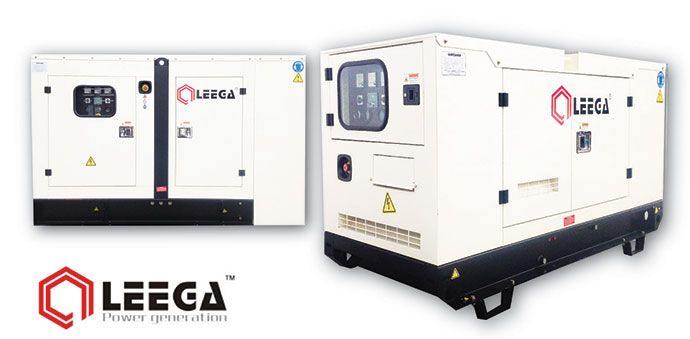

Leega Power Generator
Product Code: Leega Power Generator
Availability: Pre Order
This is a modenised production facility of generator unit and they have strong professional technical team & established lone-term cooperation relationship with enterprise such as CUMMINS, PERKINS, DEUTZ, DOOSAN, STAMFORD, LEEROY=SOMER, MARATHON, others. They have developed various types of diesel generators up to 2,000 KW, mobile power stations and others.
| Feature | Advantages |
| Combined type design to facilitate the installation | Customized according to customer demand |
| All-steel sheel with external coating of galvanized phosphoric acid | Corrosion resistant wall |
| Water proof and dust proof enclosure sealed design | Rain and dust are difficult to enter |
| Good cooling system and full exhause and heat elimination | Reduce the nosie without afecting the unit power |
| Rigorous factory test | Quality assurance |
| Small size and beautiful appearance | Convenient unit transport with high safety |
| Complete accompanying data | Convenient installatin, operation and maintenance |
| Silent Generator | |||||
| Model | LG18YD | LG27LE | LG44LE | LG66CS | LG125C5 |
| Engine Model | YND485G | 4JB1 | 4JB1TA | Cummins 4BTA3.9G2 | Cummins 6BTA5.9G2 |
| Alternator Model | Leega | Leega | Leega | Stamford | Stamford |
| Number of Cylinder/Engine (pcs / Kw) | 4/18 | 4/26 | 4/40 | 4/64 | 6/116 |
| Rated Speed / Frequency (rpm/Hz) | 1500 / 50 | ||||
| Rated Output (kW/KVA) | 13/16 | 20/25 | 32/40 | 48/60 | 90/113 |
| Standby Output (kW/KVA) | 14/18 | 22/27 | 35/44 | 53/66 | 100/125 |
| Rated Voltage (V) | 240 / 415V | ||||
| Phase and Wire | 3 Phase and 4 Wires | ||||
| Rated Power Factor | 0.8 (lagging) | ||||
| Maximum Output Current (A) | 27 | 41 | 66.8 | 100 | 189 |
| Fuel Tank Capacity (L) | 60 | 90 | 90 | 220 | 340 |
| Fuel Consumption (L/hr) | 3.5 (100% load) | 5.6 (100% load) | 8.96 (100% load) | 14.7 (100% load) | 34 (100% load) |
| Lub Oil Capacity (L) | 6 | 5.5 | 5.5 | 9.5 | 14.2 |
| Voltage for Start (V) | 12 | 12 | 12 | 24 | 24 |
| Noise Level @ 7m dB (A) | ≤ 70 | ||||
| Generator Dimension (L x W x H) (mm) |
2100 x 900 x 1300 | 2100 x 900 x 1300 | 221 x 910 x 1300 | 2500 x 1100 x 1800 | 2800 x 1080 x 1950 |
| Generator Weight (kg) | 785 | 808 | 870 | 1600 | 1930 |
