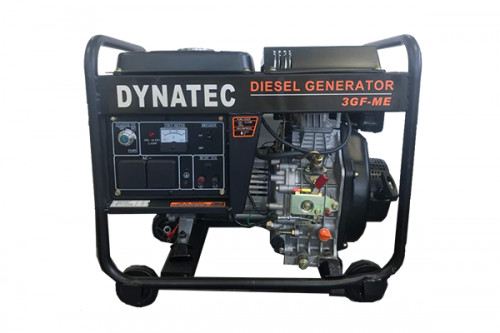

Product Code: LT2GF-M & 3GF-M/ME
Availability: Pre Order
Loading ...
Share:

Product Detail

Model LT2GF-M/LT2GF-M3 3GF-M/ME
Frequency 50/60Hz 50/60Hz
Max.Ac Output (kW) 2.2/2.5 3.0/3.6
Rated Ac Output (kW) 2.0/2.3 2.8/3.3
DC Output (V-A) 12V/8.3A 12V/8.3A
Rated Voltage (V) 220/380 220
Power Factor 1.0/0.8 1.0
Phase Single Phase/Three Phase Single Phase
Excitation System Self-excitation Self-excitation
Dimension (LxWxH) mm 390x335x400 390x470x570
Neit Weight (Kg) 21 69
Engine Model LT220FD LT178F
Type Single-cylinder;Booster;4-stroke; Air-cooled; engine Single-cylinder; vertical; 4-stroke; Air-cooled; direct-injection
Displacement (cc) 223 296
Fuel Tank Capacity 6 15
Lube.Oil Capacity 0.82 1.1
Starting System Manual Optional Manual/Electrical
Low Oil Alarm System Without With
