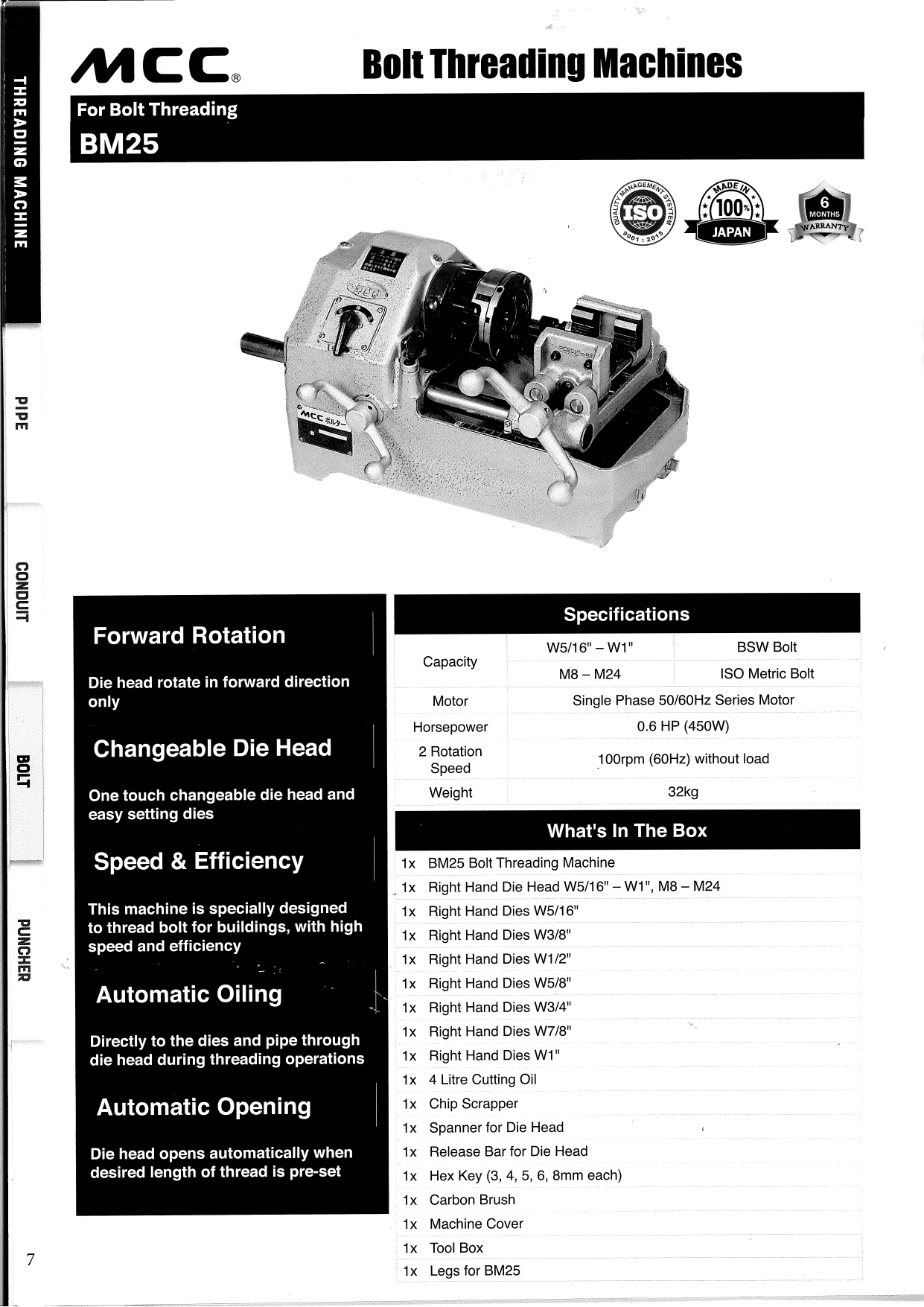

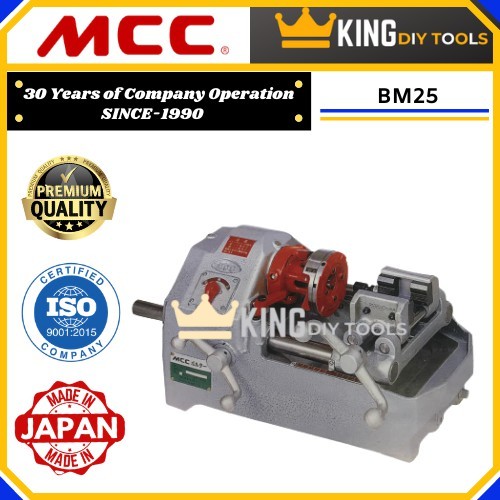

MCC BM25 Bolt Threading Machine
The MCC Model BM25 Bolt Threading Machine is an electric motor-driven machine that centers and chucks the steel rod and rotates Die Head while threading operations are performed. Threading dies are mounted in Die Head. An integral oiling system is provided to flood the work with cutting oil during the threading operations.
The machine is 100% made in Japan.
FEATURES
- Die Head rotating in both forward and reverse direction
- One-touch changeable Die Head and easy dies setting
- Automatic oil feed directly to Dies and materials through Die Head during the threading operation
- Self-opening Die Head; opens automatically when desired length of thread is cut
- This machine is designed specially to thread bolts for building construction
SPECIFICATIONS
| MODEL NO | BM25 |
|---|---|
| BSW BOLT CAPACITY | W5/16" – W1" |
| ISO METRIC BOLT CAPACITY | M8 – M24 |
| MOTOR | Single Phase 50/60Hz Series Motor |
| ROTATION SPEED | 100rpm (60Hz) (No-Load) |
| CONTROLS | Toggle Switch |
| HORSEPOWER | 0.6 HP (450W) |
| DIMENSION | 515mm(L) x 285mm(W) x 287mm(H) |
| WEIGHT | 32kg |

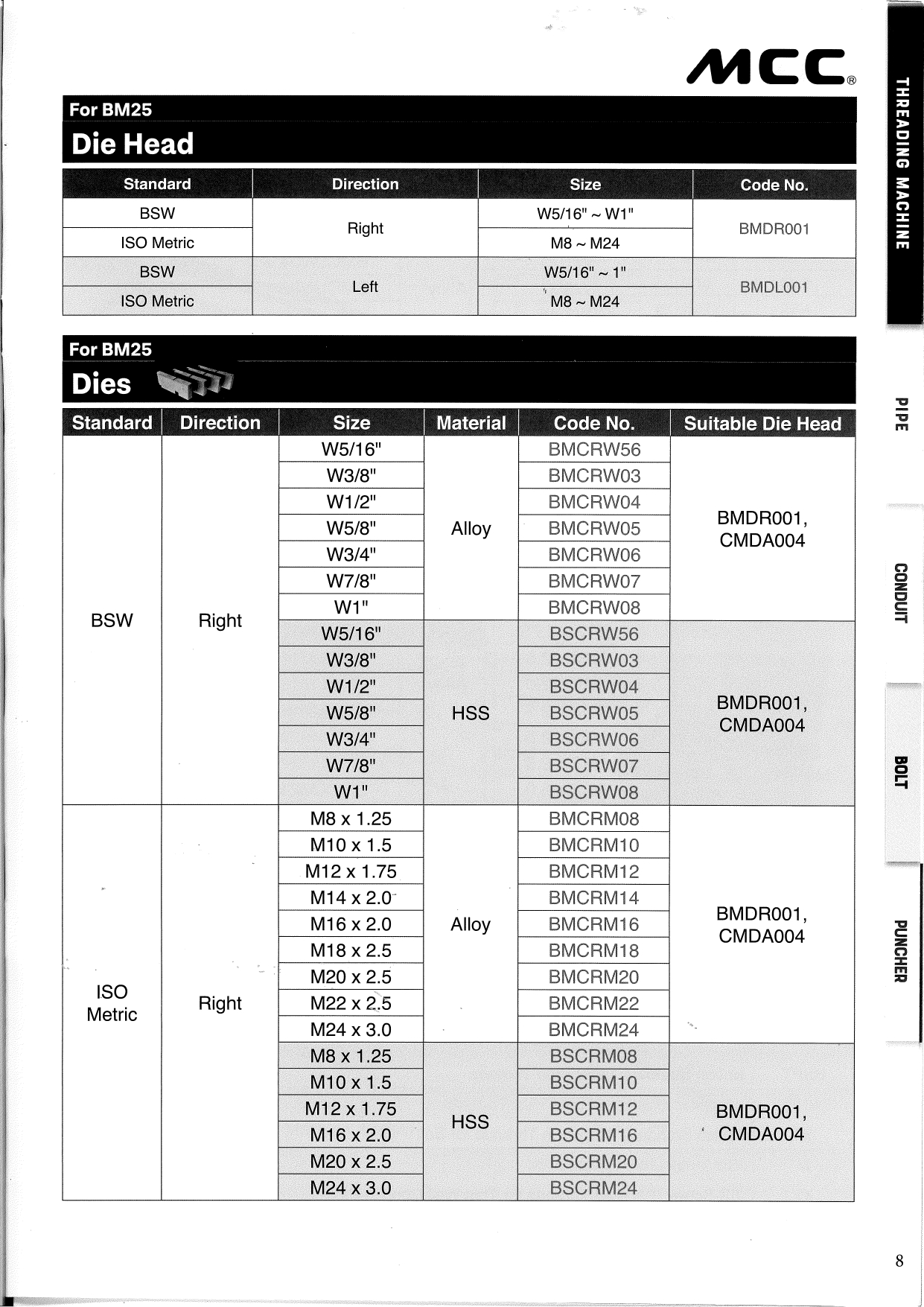

OPTIONAL ACCESSORIES
• Left Hand Die Head: W5/16" - W1", M8 - M24
• Left Hand Dies: W5/16", W3/8", W1/2", W5/8", W3/4", W7/8", W1"
• ISO Metric Dies: M8, M10, M12, M14, M16, M18, M20, M22, M24 (Left & Right)
• HSS (SKH) Die: For all sizes in Whitworth and Metric listed above
WARRANTY INFORMATION
6 Months Local Manufacturer Warranty
WHAT'S IN THE BOX
1x BM25 Bolt Threading Machine
1x Set of Right Hand Die Head W5/16" – W1", M8 – M24
1x Set of Right Hand Dies W5/16"
1x Set of Right Hand Dies W3/8"
1x Set of Right Hand Dies W1/2"
1x Set of Right Hand Dies W5/8"
1x Set of Right Hand Dies W3/4"
1x Set of Right Hand Dies W7/8"
1x Set of Right Hand Dies W1"
1x Can of 4 Litre Cutting Oil
1x Chip Scrapper
1x Spanner for Die Head
1x Release Bar for Die Head
1x Hex Key (3, 4, 5, 6, 8mm each)
1x Set of Carbon Brush
1x Machine Cover
1x Tool Box
1x Set of Legs for BM25
COMPATIBLE MATERIALSteel, Stainless Steel
