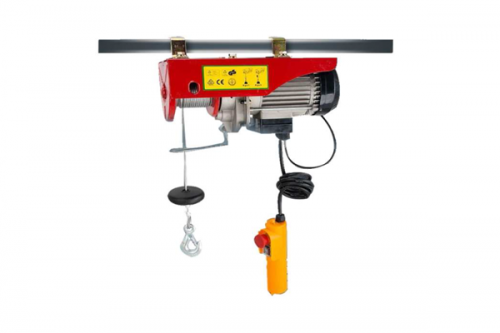

Product Code: MINI ELECTRIC HOIST

Availability: Pre Order

With emergency stop switch
Reinforced braking switch with position limit
Protection class up to IP54
With thermal prevention device

Product Detail

Model	PA-200	PA-250	PA-300	PA-400	PA-500	PA-600	PA-800	PA-1000
Use ways	Single / Double hook	Single / Double hook	Single / Double hook	Single / Double hook	Single / Double hook	Single / Double hook	Single / Double hook	Single / Double hook
Rated Voltage (v)	220/230 50hz	220/230 50hz	220/230 50hz	220/230 50hz	220/230 50hz	220/230 50hz	220/230 50hz	220/230 50hz
Input power (w)	510	530	600	880	930	1150	1800	2000
Rated Capacity (kg)	100/200	125/250	150/300	200/400	250/500	300/600	400/800	500/1000
Hoisting Speed (m/min)	10/5	10/5	10/5	10/5	10/5	10/5	10/5	10/5
Hoisting Height (m)	12/6	12/6	12/6	12/6	12/6	12/6	12/6	12/6
PCS	2	2	2	2	2	2	2	1
Packing measurement L x W x H (cm)	36.3 x 30 x 24	36.3 x 30 x 24	36.3 x 30 x 24	41.5 x 32.6 x 26.8	41.5 x 32.6 x 26.8	41.5 x 32.6 x 26.8	55.5 x 24.5 x 35.5	55.5 x 24.5 x 35.5
Gross / Net Wieght (kg)	23.4/22.4	23.4/22.4	23.4/22.4	35.8/34.8	35.8/34.8	37.4/36.4	38/37	38/37
