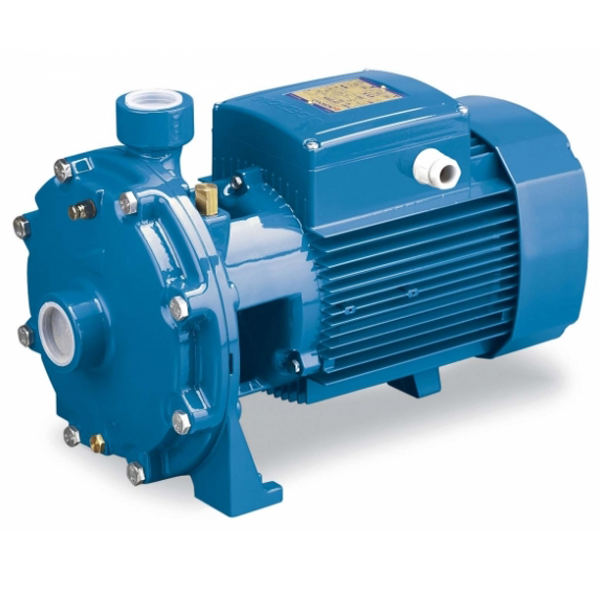

Pedrollo 2 Impeller Pump 3.0kW, 40~250L/min, 66~36m, 2CP32/200C
Product Code: 2CP32/200C
Availability: In Stock
Model: 2CP32/200C (Three Phase)
Water pumps with high efficiency motor for maximum energy saving. Brass impeller!
Price inclusives 6%GST.
Descriptions
- The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Pumped liquid: clean water
Use: domestic, civil, industrial
Type: surface
Range: centrifugal
Application limits
- Manometric suction lift up to 7 m
- Liquid temperature between -10°C and +90°C (up to +40 for the version with the technopolymer impeller)
- Ambient temperature between -10°C and +40°C
- Max. working pressure 10 bar (6 bar for 2CP25/130N)
- Continuous service S1
Specifications
| Size Discharge | 1-1/2" x 1-1/4" |
| Power | 3000 W / Three phase |
| Flow Rate | 40 ~ 250 L/min |
| Head | 66.5 ~ 36 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +90°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 464mm x 266mm x 304mm |
| Weight | 38.8 kg |
