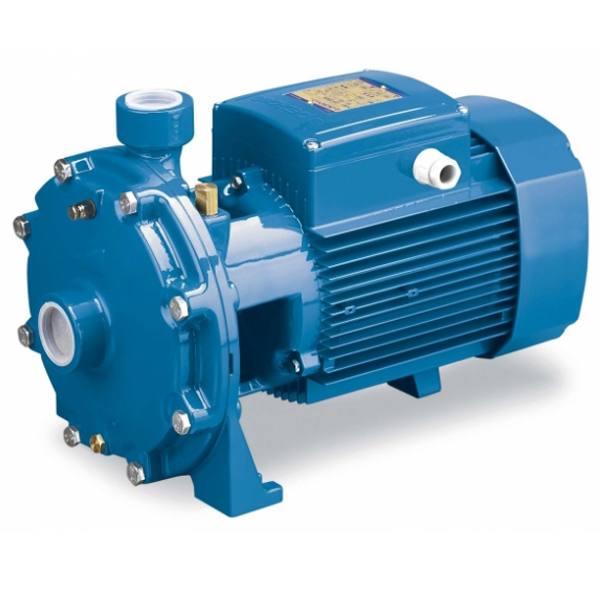

Pedrollo 2 Impeller Pump 750W, 20~100L/min, 39~15m, 2CPm25/130N

Pedrollo 2 Impeller Pump 750W, 20~100L/min, 39~15m, 2CPm25/130N
Pedrollo 2 Impeller Pump 750W, 20~100L/min, 39~15m, 2CPm25/130N

Pedrollo 2 Impeller Pump 750W, 20~100L/min, 39~15m, 2CPm25/130N

Product Code: 2CPm25/130N
Availability: In Stock
Loading ...
Share:

Model: 2CPm25/130N (Single Phase)
Water pumps with high efficiency motor for maximum energy saving.

Price inclusives 6%GST.

Descriptions

  • The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.
  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean water

Use: domestic, civil, industrial

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10°C and +90°C (up to +40 for the version with the technopolymer impeller)
  • Ambient temperature between -10°C and +40°C
  • Max. working pressure 10 bar (6 bar for 2CP25/130N)
  • Continuous service S1

Specifications

Size Discharge   1-1/4" x 1"
Power 750 W / Single phase
Flow Rate 20 ~ 100 L/min
Head 39 ~ 15 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   330mm x 180mm x 201mm
Weight 14.5 kg
