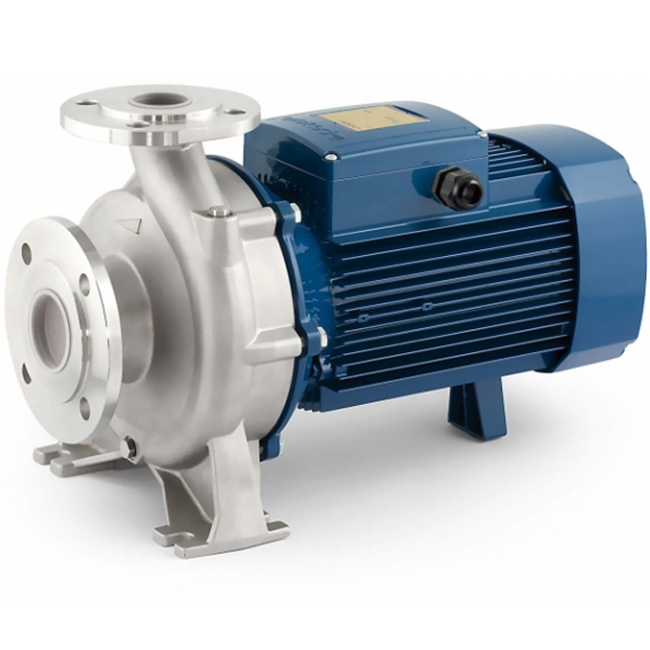

Pedrollo C.Pump SS AISI316 4000W 300~1000L/min 27~16m F50/160C-I
Product Code: F50/160C-I
Availability: In Stock
PREFER CONTACT KENT
Model: F50/160C-I (3 phase)
Price inclusives 6%GST.
Descriptions
- Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
INSTALLATION AND USE
- Water supply
- Cleaning sets
- Pressure boosting
- Firefighting sets
- Irrigation
- Industrial applications
- Water circulation in climatisation sets
- Agricultural applications
Pumped Liquid: Clean Water
Use: Industrial
Type: Surface
Range: Centrifugal
APPLICATION LIMITS
- Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +90 °C
- Ambient temperature between -10 °C and +40 °C
- Max. pressure in pump body 10 bar (PN10)
- Continuous service S1
Specifications
| Size Discharge | 2-1/2" x 2" |
| Power | 4000 W / Three phase |
| Flow Rate | 300 ~ 1000 L/min |
| Head | 27 ~ 16 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +90°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 489mm x 269mm x 340mm |
| Weight | 50.2 kg |
