Model: CB2-4CPm100E (Two Multi-stage Centrifugal Pumps)

Price inclusives 6%GST.

Description

  • COMBIPRESS are twin pump sets for water pressurisation, with a range to suit the requirements of domestic, civil agricultural and industrial applications.

Principle of Operation

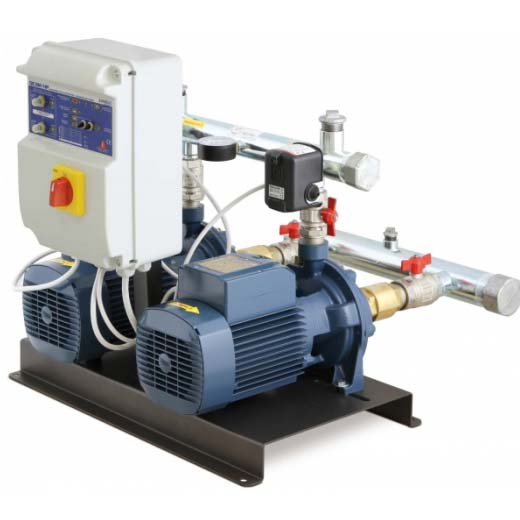

  • COMBIPRESS pressure booster sets are pre-assembled ready for installation.
  • The sets operate as "duty-assist", with one or both pumps starting automatically in succession as demand for water increases.
  • This system is enery efficient as it only starts the pumps necessary to meet the demand.
  • The lead pump is alternated automatically by the control panel.

Uses

  • Clean water and chemically non-aggressive liquids.
  • Water Supply: pressure boosting in industrial applications, condominiums, hotels, communities, water treatment plants, campsites, schools, hospitals, barracks, etc
  • Irrigation: playing fields in general (football, golf, etc), agricultural cultivation, artificial snow systems.

Construction Characteristics

  • PUMPS complete with suction and delivery manifolds, ball valves and non-return valves.
  • BASE made from sheet metal.
  • PRE-INSTALLED control systems, comprising a pressure gauge and two user-adjustable pressure switches (the factory settings are indicated in the following tables), fitted to the delivery manifolds.
  • CONTROL BOX complete with door-interlock power switch, low voltage pressure switch command circuit, automatic pump alternation function, thermal overload protection and pump start-up protection (prevents the pumps from continuously starting-up as a result of small and brief supply demands).
    • CB2m: Single Phase 230V - 50Hz.
    • CB2: Three Phase 230/400V - 50Hz up to 4kW.
                                        400/690V - 50Hz from 5.5 to 18.5kW.

Specifications

Power   0.75 + 0.75 kW
Phase Single Phase
Max. Flow Rate 10.8 m³/h
Head 46 m
Max. Head 180 L/min
Pressure Switch Factory Setting (1 bar)     3 ÷ 4
Pressure Switch Factory Setting (2 bar) 2.5 ÷ 3.5
