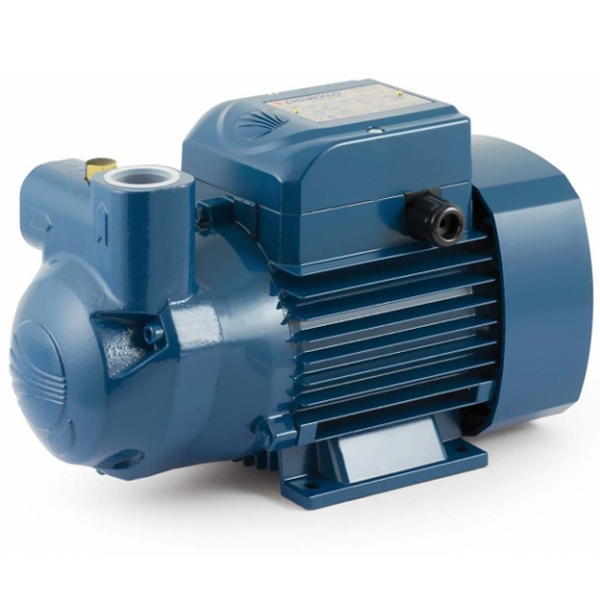

Pedrollo Self Priming Pump for Diesel 750W 5~50L/m 46~13m CKm90E

Pedrollo Self Priming Pump for Diesel 750W 5~50L/m 46~13m CKm90E
Pedrollo Self Priming Pump for Diesel 750W 5~50L/m 46~13m CKm90E

Pedrollo Self Priming Pump for Diesel 750W 5~50L/m 46~13m CKm90E

Product Code: CKm90E
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: CKm90E (Single Phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use with diesel, clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • As a specific result of the pump’s operating principle they are suitable for use in all situations where a compact self-priming pump is required or where the fluid supply is limited, irregular or contains air.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Performance Range

  • Flow rate up to 50 l/min (3 m³/h)
  • Head up to 51 m

Application Limits

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature between -10 °C and +90 °C
  • Temperature of diesel up to +55°C
  • Ambient temperature up to +40 °C
  • Max. working pressure 6 bar
  • Continuous service S1

Specifications

Size Discharge   1" x 1"
Power 750 W / Single phase
Flow Rate 5 ~ 50 L/min
Head 49 ~ 13 meters
Manometric Suction Lift Max. 9 meters
Liquid Temperature Max. +90°C
Diesel Temperature +55°C
Environment Temperature  Max. +90°C
Dimensions (L x W x H)   296mm x 140mm x 180mm
Weight 10.9 kg
