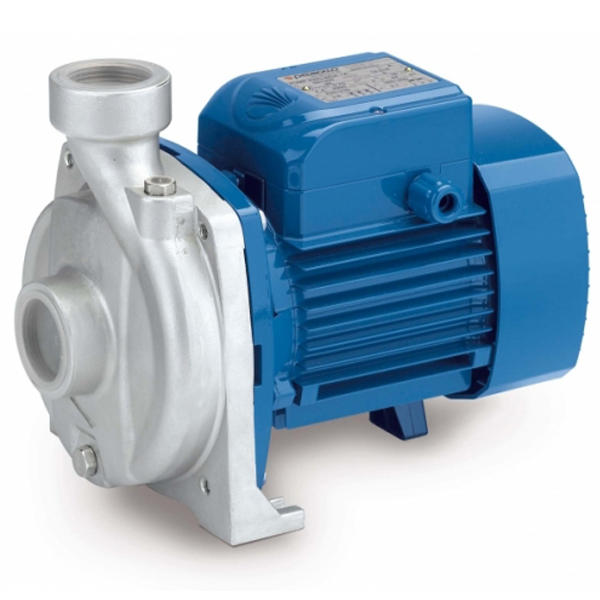

Pedrollo Stainless Pump 750W, 50~350L/min, 19.5~6m, PRO-NGAm1A

Pedrollo Stainless Pump 750W, 50~350L/min, 19.5~6m, PRO-NGAm1A
Pedrollo Stainless Pump 750W, 50~350L/min, 19.5~6m, PRO-NGAm1A

Pedrollo Stainless Pump 750W, 50~350L/min, 19.5~6m, PRO-NGAm1A

Product Code: PRO-NGAm1A
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: PRO-NGAm1A (Single Phase)

Price inclusives 6%GST.

Descriptions

  • The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging.
  • All of the components in contact with the pumped liquid are constructed in stainless steel AISI 316. As a result of these characteristics the PRO-NGA series pumps find specific use in assemblies for washing fruit, vegetables, fish and shellfish, in industrial assemblies for washing metallic objects and glass containers, as well as for the circulation of cooling liquids.
  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped liquid: clean or relatively laden water

Use: industrial, agricultural

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature between -10 °C and +40 °C
  • Max. working pressure 6 bar
  • Passage of suspended solids up to Ø 10 mm
  • Continuous service S1

Specifications

Size Discharge   1-1/2" x 1-1/2"
Power 750 W / Single phase
Flow Rate 50 ~ 350 L/min
Head 19.5 ~ 6 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   297mm x 190mm x 227mm
Weight 13.1 kg
