Product Code: ELEMENT40
Availability: In Stock
Loading ...
Share:

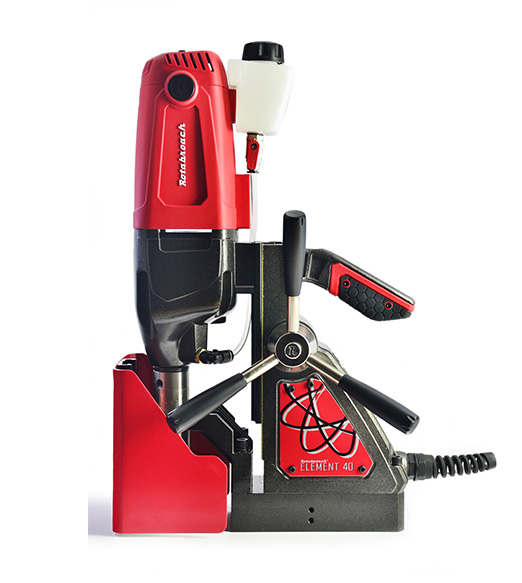

Element 40

  • The ‘Element 40’ has a powerful, two speed mechanical gearbox.
  • Small in size but this machine revels in the harshest of environments.
  • Suitable for drilling up to 40mm diameter by 50mm depth.

Model Number Element 40/1 / Element 40/3
Motor Specification 110V 1200W / 230V 1200W
No Load RPM Low Gear: 300 RPM



High Gear: 600 RPM

Max Hole Cutting Capacity ø40 x 50mm deep
Drill Chuck Capacity ø13mm
Overall Dimensions Height: 510mm / Width: 185mm with Capstan / Length: 285mm with Guard
Machine Weight 13.65kg
Magnetic Adhesion 10,000N
Magnet Size 180mm x 90mm
Safety Features Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch
