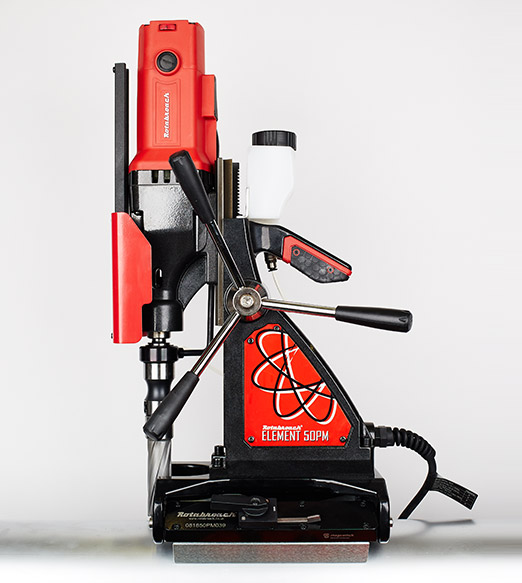

Element 50 Pivot Magnet

The latest addition to the Rotabroach range, the E50 Pivot Magnet is specifically designed for drilling on curved, uneven surfaces. With its permanent magnet, the E50PM retains magnetic adhesion, even on thinner surfaces.

  • Maintains strong grip on curved steel and pipework down to 3.5mm material thickness.
  • Can be also used for standard flat surface drilling.
  • Twist drill, threading and countersinking capability.
  • Permanent magnet technology – magnet does not require electrical power.
  • Double pivoting magnet base – two separate magnets allowing machine movement in-between drilling for inspection & debris removal without losing position.
  • Safe and hidden away internal cabling.
  • Mounted coolant bottle, steel sliding guard and switchable handle.
  • Centered control panel with Cutsmart™ for increased tool and machine life.

Model Number Element 50/1PM / Element 50/3PM
Motor Specification 110V/1500W / 230V/1500W
No Load RPM Low Gear: 100-265 RPM



High Gear: 200-500 RPM

Max Hole Cutting Capacity ⌀50 x 50mm Deep – 20mm with 2MT twist drill
Overall Dimensions Height: min 490mm – max 640mm / Width: 190mm / Length: 317mm
Stroke 140mm
Machine Weight 110V/18kg / 230V/17.7kg
Magnetic Adhesion 8430N
Magnet Size Height: 277mm / Width: 190mm
Safety Features Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Secondary Motor Protection
