Sand Resistant Pump 1-1/4" 1.1kW 20~100L/min 88~35m 4SR4m/14-P

Sand Resistant Pump 1-1/4
Sand Resistant Pump 1-1/4

Sand Resistant Pump 1-1/4" 1.1kW 20~100L/min 88~35m 4SR4m/14-P

Product Code: 4SR4m/14-P
Availability: In Stock
Loading ...
Share:

Model: 4SR4m/14-P (Single Phase)

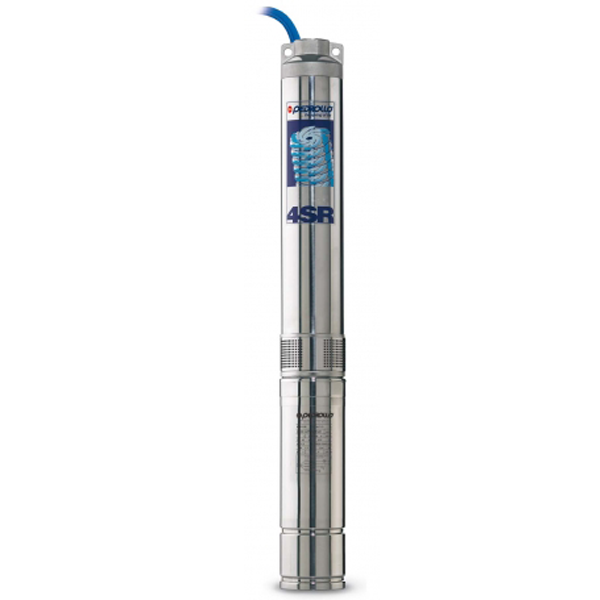

Bore hole submersible pump with sand-resistant.

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water with a sand content of no more than 150 g/m³.
  • As a result of their high efficiency and reliability, they are suitable for use in domestic, civil and industrial applications such as for the distribution of water in combination with pressure sets, for irrigation, for washing plants and for pressure boosting in fire-fighting sets, etc.

Pumped liquid: clean water with sand max 150 g/m³

Use: domestic, civil, industrial

Type: submerged

Range: for 4” wells

Application limits

  • Maximum liquid temperature +35 °C
  • Maximum sand content 150 g/m³
  • 100 m immersion limit

Installation:

  • vertical
  • horizontal, with the following limits:
    (a) 4SR1 - 4SR1.5 - 4SR2 - 4SR4 up to 27 stages
    (b) 4SR6 - 4SR8 - 4SR10 - 4SR12 - 4SR15 up to 17 stages
  • Starts/hour: 20 at regular intervals
  • Minimum flow rate for motor cooling 8 cm/s
  • Continuous service S1

Specifications

Size Discharge   1-1/4"
Power 1100 W / Single phase
Flow Rate 20 ~ 100 L/min
Head 88 ~ 35 meters
Immersion Limit Max. 100 meters
Liquid Temperature Max. +35°C
Environment Temperature  Max. +35°C
Dimensions  (Ø x H )   98mm x 902mm
Weight 17.2 kg
