Product Code: Self Manual Nozzles
Availability: Pre Order
Loading ...

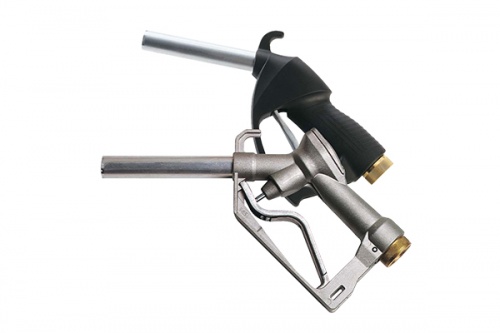

Manual nozzles, These nozzles, distinguished by high efficiency, based on low flow resistance, remarkable easy use and of resonable cost, are designed to be used with any tyoe if transfer system, even those run by gravity . Supplied complete with removable lever protection, a variety of threaded connectors and a reduced section tube for unleaded gasoline.
Share:

Product Detail

Weight

Code Weight
KG Lbs
F00641130 0,7 1,5
F0065000A 0,6 1,3
00065001A 0,6 1,3
F0063001A 0,2 0,4
F0063000A 0,2 0,4

Technical Data

Code F00641130 F0065000A 00065001A F0063001A F0063000A
Description *Self 2000 1" *Self 3000 1" *Self 3000 1" unleaded spout Plastic nozzle 1" (water/food version) Plastic nozzle-S 1"
Fluids (type) B D G O B D G O B D G O B D G O W B D G O W
Flow-rate (I/min) 120 150 150 80 80
Flow-rate (gpm) 32 40 40 21 21
Inlet (Swivel BSP) YES YES YES NO (Hose tail 1") YES
Inlet (With Swivel BSP) F 1" F 1" F 1" F 1" F 1"
Spout (mm) 25 25 20 34 34
