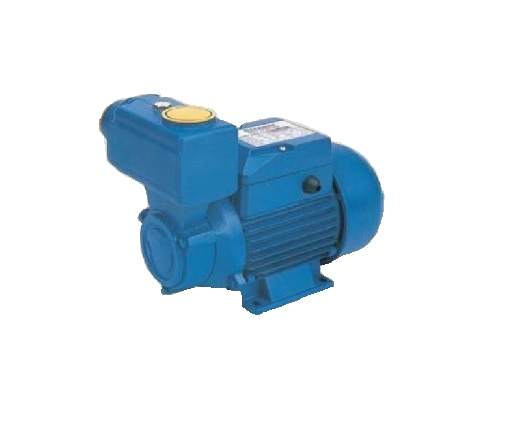

Self Priming Pump (Jet Pump) (II)
Product Code: STPS70
Availability: Pre Order
Range of Performance
Flow rate up to 100L/min. Head up to 55m.
Limits of Use:
- Max. ambient temperature up to 40°C.
- Max. fluid temperature up to 40°C.
- Max pressure up to 10 bar.
Construction Features:
- Pump Body : Cast iron /plastic /stainless steel
- Motor housing : aluminium
- Shaft : 45#steel /stainless steel
- Impeller : brass /plastic
- Motor : closed, externally ventilized
- Insulation class : B/F Protection
- Class : IP44 /IP54
- Duty : continuously rated
- Mechanical Seal : ceramic steatite /metalized carbon
| Model | Size | Power | Performance Q(L/min) | Performance H(m) | Dimensions (cm) |
| STPS70 | 1" x 1" | 0.75HP / 1ф | Aug-46 | 55-10 | 29.5x19.5x23.5 |
