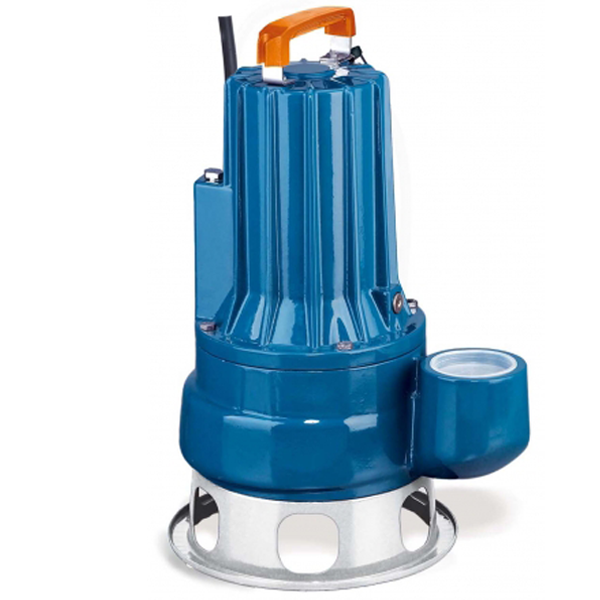

SINGLE CHANNEL PUMP 3-1/2" 1.1KW/3 100~800L/MIN 22~2M MC30/50

SINGLE CHANNEL PUMP 3-1/2
SINGLE CHANNEL PUMP 3-1/2

SINGLE CHANNEL PUMP 3-1/2" 1.1KW/3 100~800L/MIN 22~2M MC30/50

Product Code: MC30/50
Availability: In Stock
Loading ...
Share:

Model: MC30/50 (Three Phase)

Price inclusives 6%GST.

Descriptions

  • MC series pumps, made from heavy gauge cast iron off ering exceptional sturdiness, abrasion resistance and durability, come equipped with a DOUBLE-CHANNEL impeller and are capable of pumping liquids containing short fi bred suspended solids.
  • They are ideal for pumping sewage, waste water, water mixed with mud, groundwater and surface water in locations such as apartment blocks, public buildings, factories, tower garages, underground car parks and cleaning areas, etc.

Pumped liquid: drainage dark water

Use: domestic, civil, industrial

Type: submersible

Range: double-channel

Application limits

  • 10 m maximum immersion depth
  • Maximum liquid temperature +40°C
  • Solids passage:
    (a) up to Ø 50 mm fpr MC 15-20-30-40/50
    (b) up to Ø 70 mm for MC 30-40/70
  • Minimum immersion depth for continuous service:
    (a) 380 mm for MC 15-20-30-40/50
    (b) 430 mm for MC 30-40/70

Specifications

Size Discharge   2-1/2"
Power 1100 W / Three phase
Flow Rate 100 ~ 800 L/min
Head 22~ 2 meters
Immersion Limit Max. 10 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions Ø x H   349mm x 490mm
Weight 39.2 kg
