SPOT Welding Machine » DIGITAL CAR SPOTTER 5500
Product Code: DIGITAL CAR SPOTTER 5500
Availability: In Stock
RM0.00

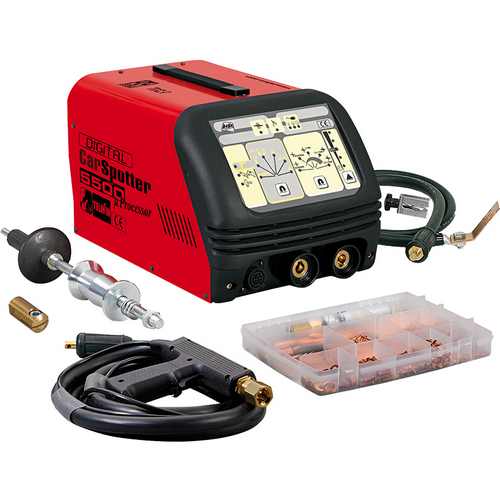

Microprocessor controlled, spot-welding machine fit for applications in car body shops.
The LCD digital, multifunction control panel allows the automatic regulation of spot welding parameters according to the chosen tool and sheet thickness.
Complete with the “STUDDER” kit for spot welding of screws, washers, rivets and pulling stars, sheet warming and upsetting.
Technical Spec
| MODEL | DIGITAL CAR SPOTTER 5500 (823174) |
|---|---|
| Main voltage | 230V | 50/60Hz | 1 Phase |
| Max no load voltage | 5.4V |
| Output current | 3000A |
| Max absorbed power | 11kW |
| Absorbed power at 50% | 2.8kW |
| Main fuse | 16A |
| 0.7 cosphi | Power factor |
| Max spot welding on 2 side | 1.5mm + 1.5mm |
| Duty cycle | 3% |
| Protection class | IP22 |
| Dimension (L×W×H) | 390×260×225mm |
| Weight | 29kg |
