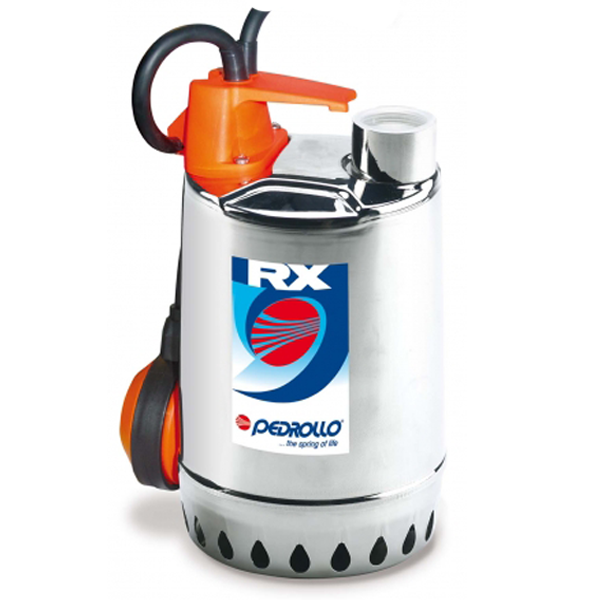

SS Submersible Pump 1-1/4", 0.25kW/1, 20~160L/min, 6.5~1m RXm1

SS Submersible Pump 1-1/4
SS Submersible Pump 1-1/4

SS Submersible Pump 1-1/4", 0.25kW/1, 20~160L/min, 6.5~1m RXm1

Product Code: RXm1
Availability: In Stock
Loading ...
Share:

Model: RXm1 (Single Phase)

Price inclusives 6%GST.

Descriptions

  • The RX series pumps are suitable for use with clear water that does not contain abrasive particles.
  • As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
  • They are suitable for use in fixed installations and applications such as draining small flooded areas (rooms, cellars, garages) in the event of an emergency, for the disposal of waste water in the home (from dishwashers, washing machines) and for emptying drainage traps.

Pumped liquid: drainage clear water

Use: domestic, civil

Type: submersible

Range: centrifugal

Application limits

  • 10 m maximum immersion depth
  • Maximum liquid temperature +50 °C (Maximum liquid temperature +90 °C for a maximum of 3 minutes intermittent service)
  • Passage of suspended solids up to Ø 10 mm
  • Suction level:
    (a) 14 mm above ground level for RX 1-2-3
    (b) 25 mm above ground level for RX 4-5
  • Continuous service S1

Specifications

Size Discharge   1-1/4"
Power 250 W / Single phase
Flow Rate 20 ~ 160 L/min
Head 6.5 ~ 1 meters
Immersion Limit Max. 10 meters
Liquid Temperature Max. +50°C
Environment Temperature  Max. +40°C
Dimensions Ø x H   147mm x 225mm
Weight 4.7 kg
