Submersible Slurry Pump (II)
Submersible Slurry Pump (II)

Submersible Slurry Pump (II)

Product Code: KBS
Availability: Pre Order
Loading ...
017 432 8850016 397 5838
Share:

Features:

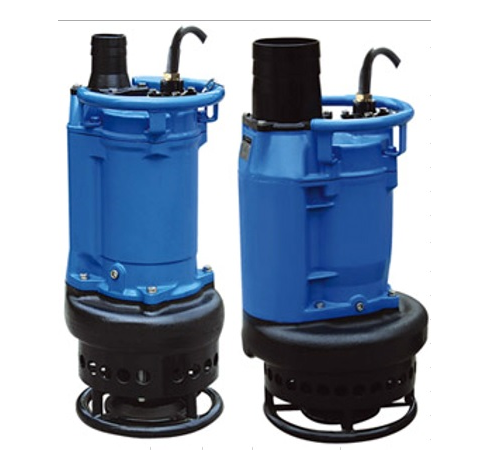

  • Submersible slurry pumps with a 4-pole motor for an increased lifetime and greater convenience.
  • KBS-based extra powered submersible slurry pumps with agitator.
  • Slim design with a top discharge enabling installation in smaller casings.
  • For bentonite mixed water in foundation works or muddy water in civil engineering work. Specification :
  • Capacity: up to 3.25 m3/min
  • Head: up to 22 m
  • Discharge 80mm (3") to 150mm (6")
  • Power:4Kw(5-1/3 HP)to 9Kw(12 HP)
  • Insulation class:F
  • Cable:length 8m
Model Outlet (mm) Power (Kw) Max. Head (m) Mac Capacity m3 /min Impeller passage (mm) N.W (kg) G.W (kg) Packing Size
80KBS44 80 4 14.8 1.65 30 108 119 885x385x395
100KBS46 100 6 16.9 2.5 30 141 151 470x410x985
150KBS49 150 9 21.5 2.85 30 171 183 470x470x1045
200KBS415 200 15 22 6.2 30 260 278 470x500x1220
200KBS422 200 22 32 6 30 408 434 740x570x1460
