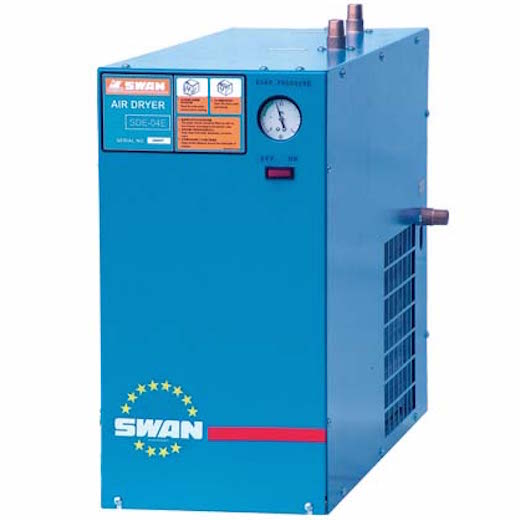

SWAN Air Dryer 14000L/min, 100HP, 2", 50°C, 95kg SDE-75A

SWAN Air Dryer 14000L/min, 100HP, 2
SWAN Air Dryer 14000L/min, 100HP, 2

SWAN Air Dryer 14000L/min, 100HP, 2", 50°C, 95kg SDE-75A

Product Code: SDE-75A
Availability: In Stock
Loading ...
Features

Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.
Share:

Model: SDE-75A
SWAN refrigerated air dryer suitable for air compressor from 75HP to 100HP.

Features

  • Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
  • Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
  • Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
  • Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.

Specifications

Applicable Ranges
for Air Compressor
75HP to 100HP
Flow Rate 14000L/min
Dew Point 2~10°C
Inlet Temperature Max. 50°C
Ambient Temperature 2~40°C
Working Pressure 2~10 Bar
Inlet & Outlet 2"
Voltage 415V
Type of Refrigerant R-407C
Dimensions (L x W x H) 470mm x 973mm x 1139mm
Weight 95kg
