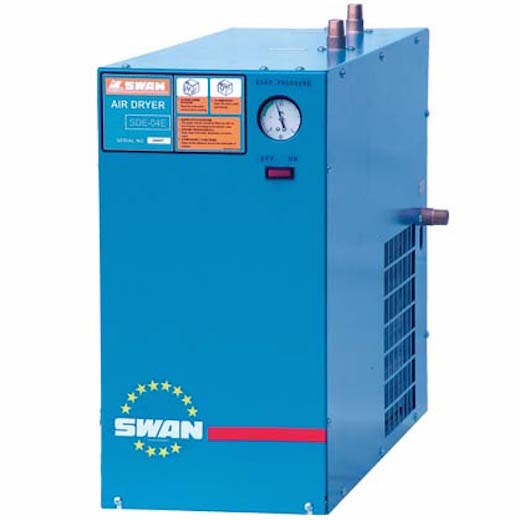

SWAN Air Dryer 7000L/min, 50HP, 1-1/2", 50°C, 70kg SDE-37A
Product Code: SDE-37A
Availability: In Stock
Model: SDE-37A
SWAN refrigerated air dryer suitable for air compressor from 30HP to 50HP.
Features
- Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
- Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
- Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
- Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.
Specifications
| Applicable Ranges for Air Compressor |
30HP to 50HP |
| Flow Rate | 7000L/min |
| Dew Point | 2~10°C |
| Inlet Temperature | Max. 50°C |
| Ambient Temperature | 2~40°C |
| Working Pressure | 2~10 Bar |
| Inlet & Outlet | 1-1/2" |
| Voltage | 415V |
| Type of Refrigerant | R-407C |
| Dimensions (L x W x H) | 305mm x 963mm x 922mm |
| Weight | 70kg |
SWAN Air Dryer Series
