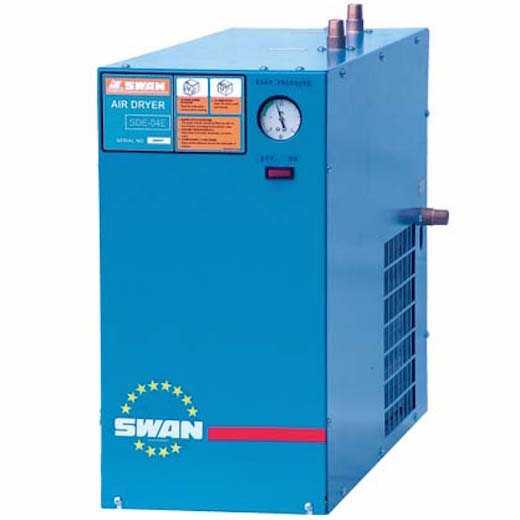

SWAN Air Dryer 9800L/min, 75HP, 1-1/2", 50°C, 88kg SDE-55A
Product Code: SDE-55A
Availability: In Stock
Model: SDE-55A
SWAN refrigerated air dryer suitable for air compressor from 50HP to 75HP.
Features
- Highly grade finned coil type Heat Exchanger to maximize heat transfer by the ample heat exchanging surface.
- Microprocessor control system ensures the stable and quiet running; avoids starting/stopping vibration and breakdown.
- Heavy duty reliable design which totally meet the working requirements under the warm and high humidity ambient conditions. Ample heat exchanger and efficient air circuit design make the pressure drop to the least.
- Using environmental friendly refrigent R-407c or R-134a for all models. Dependable control system, easy operation, solid construction, least maintenance, and highest reliability all in one.
Specifications
| Applicable Ranges for Air Compressor |
50HP to 75HP |
| Flow Rate | 9800L/min |
| Dew Point | 2~10°C |
| Inlet Temperature | Max. 50°C |
| Ambient Temperature | 2~40°C |
| Working Pressure | 2~10 Bar |
| Inlet & Outlet | 1-1/2" |
| Voltage | 415V |
| Type of Refrigerant | R-407C |
| Dimensions (L x W x H) | 305mm x 963mm x 922mm |
| Weight | 88kg |
