Swan Diesel Engine Air Compressor HVU-205E(LA186): 10HP, 12Bar, FAD406L/min, 900rpm,

Swan Diesel Engine Air Compressor  HVU-205E(LA186): 10HP, 12Bar, FAD406L/min, 900rpm,
Swan Diesel Engine Air Compressor  HVU-205E(LA186): 10HP, 12Bar, FAD406L/min, 900rpm,

Swan Diesel Engine Air Compressor HVU-205E(LA186): 10HP, 12Bar, FAD406L/min, 900rpm,

Product Code: HVU-205E(LA186)
Availability: Pre Order
Loading ...
Share:

Description

Model: HVU-205E (LA186 Diesel Engine)

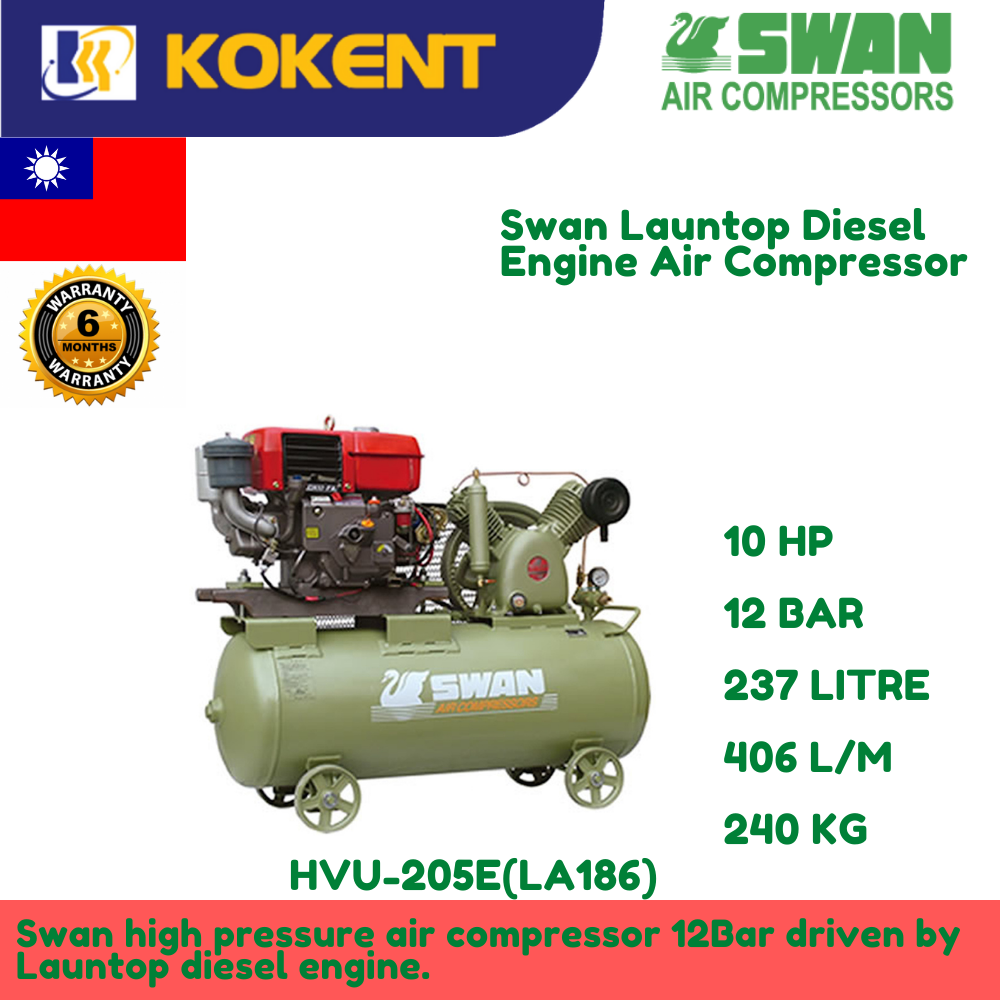

Swan high pressure air compressor 12Bar driven by Launtop diesel engine.

Features

  • Key start & Coil start.
  • High pressure compressed air comes from two stage compressing air compressor, to disassemble the tire fast and easily.
  • Adjustable torque air wrench-ensure the stud firmly lock.
  • With petrol engine driving:Provide efficient power to the required work at anywhere.
  • Extremely convenient to on call service.

Control System

  • Automatic UnloaderSystem “U” Type
    The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of pre-set pressure values.
    This system is recommended where the duty cycle exceeds 50% and for all larger compressors units.

Specifications

Launtop LA186 Diesel Engine 10 hp
Working Pressure (kg/cm²) 12 Bar
Compressor Speed 900 rpm
F.A.D 406 L/min
Tank Capacity 237 Liter
Compressor Block
Physical Dimension (L x W x H)
560mm x 380mm x 460mm
Weight 67kg
Compressor Unit
Physical Dimension (L x W x H)
1470mm x 550mm x 1100mm
Weight 240kg
