Swan Electric Air Compressor HWU-415N: 15HP, 12Bar, FAD1120L/min, 850rpm, 3phase
Product Code: HWU-415N
Availability: Pre Order
Description
Model: HWU-415N

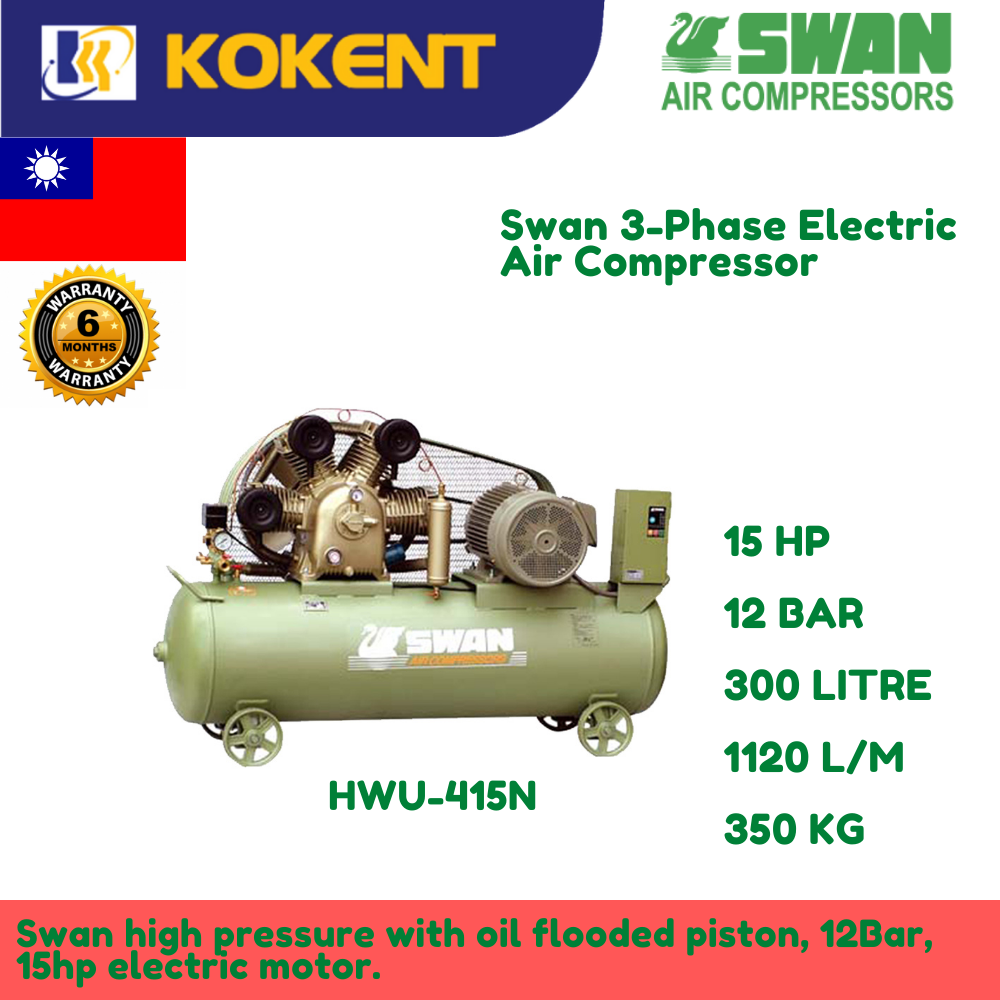

Swan high pressure with oil flooded piston, 12Bar, 15hp electric motor.
- 3phase
Features
- Big Crankcase oil sump.
- Special oil-filled crankshaft.
- Built-in enforced lubrication system provides highly reliable solutions.
- Oil pressure protection mechanism.
- Effective air circulative cooling system.
- Unloading design.
- Design for heavy duty industries.
Control System
- Automatic Unloader System “U” Type
The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of preset pressure valves.
This system is recommended where the duty cycle exceeds 50% and for all larger compressor unit.
Specifications
| Motor | 11kw / 15hp, 415V, 3 Phase |
| Working Pressure (kg/cm²) | 12 Bar (Max. 16 Bar) |
| Compressor Speed | 850 rpm |
| F.A.D | 1120 L/min |
| Tank Capacity | 300 Liter |
| Compressor Block Physical Dimension (L x W x H) |
700mm x 520mm x 550mm |
| Weight (Bare Head only) | 118 kg |
| Compressor Unit Physical Dimension (L x W x H) |
1835mm x 650mm x 1200mm |
| Weight (Whole Unit) | 350 kg |
